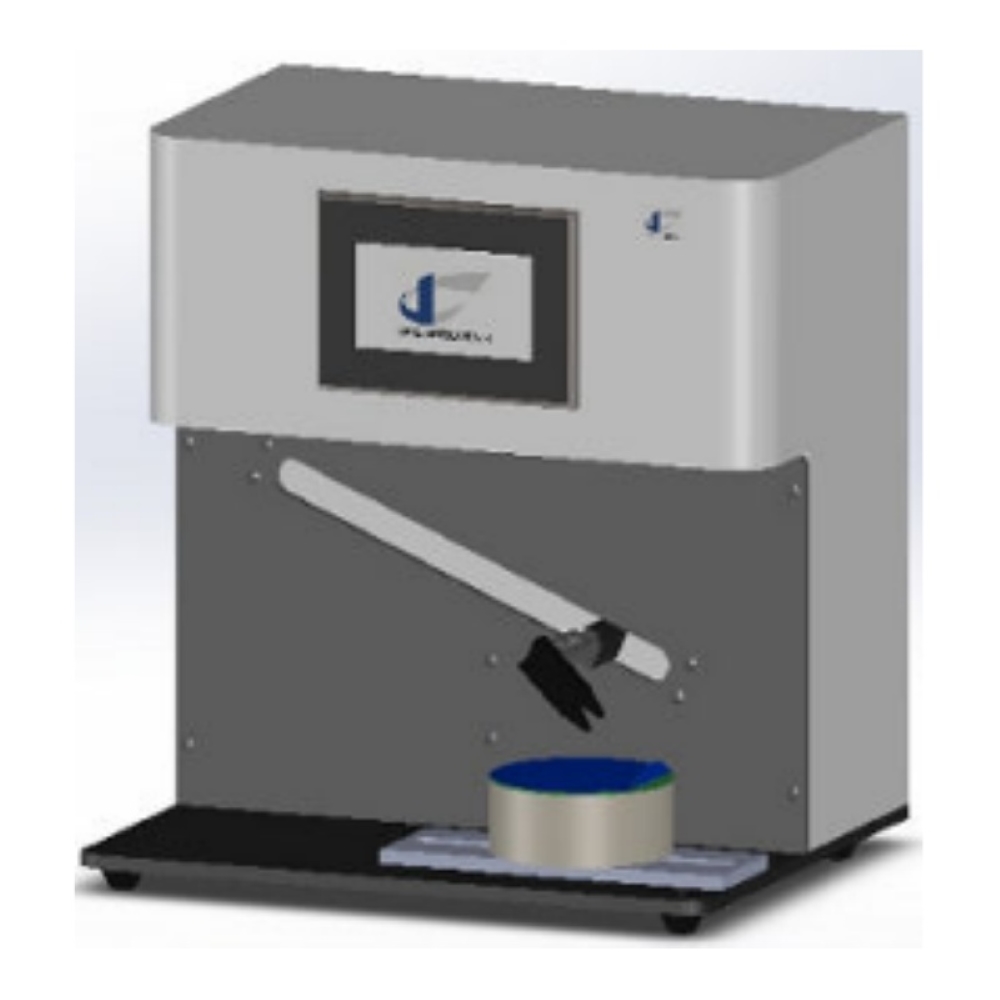

CCPT-01 Cup and Container Peeling Tester

Introduction

The Yogurt Container Lid Film Peel Tester is an essential instrument for measuring the mechanical seal strength of yogurt container lids. This tester ensures product integrity and consumer safety by evaluating the forces required to peel off the lid from the container. In an industry where packaging quality directly impacts consumer trust, this tester plays a crucial role in the food packaging sector.

Standards Overview

ASTM F2824: Standard Test Method for Mechanical Seal Strength Testing

ASTM F2824 is a recognized standard that outlines the methodology for assessing the mechanical seal strength of round cups and bowl containers equipped with flexible peelable lids. This standard provides detailed instructions for performing peel tests, emphasizing the importance of testing under consistent conditions. The typical angle of pull for these tests is 45 degrees; however, the method allows for other angles to accommodate various testing requirements.

Other Relevant Standards

In addition to ASTM F2824, the Yogurt Container Lid Film Peel Tester adheres to ISO 17480, which further guides the mechanical seal strength testing of packaging materials. These standards ensure that the testing process aligns with global quality assurance measures.

Application

The Yogurt Container Lid Film Peel Tester is specifically designed for yogurt containers but is versatile enough to accommodate a variety of packaging types, including ready meals, creamers, and other food products in rigid or semi-rigid containers. The ability to test multiple container shapes—round, oval, and rectangular—ensures that manufacturers can maintain high standards of quality across their product lines.

Benefits

1. Robust Design
   • Featuring an internal three-pillar structure and a stepping motor, this tester guarantees exceptional stability during tests. Its design allows for a wide application range, making it suitable for various container shapes and sizes.
2. User-Friendly Interface
   • The integrated PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) provide a color display for intuitive operation, simplifying the testing process for users.
3. Versatile Testing Options
   • The tester offers stepless speed regulation, allowing users to customize the testing speed according to their needs. Both manual (click-to-move) and automatic test initiation options ensure flexibility in operation.
4. Safety Features
   • Equipped with overload and stroke protection, the tester safeguards both the instrument and the user. It also supports fixed value tests, enabling precise control over testing parameters like stroke position and holding time.
5. Data Management
   • The real-time force curve display provides immediate feedback on test results, while automatic calculations of maximum, minimum, and average forces enhance data accuracy and usability. Optional computer software allows for detailed data analysis and reporting.
6. Custom Fixtures
   • The availability of customized fixtures, including a vacuum clamping mechanism, ensures secure testing of yogurt container lids, contributing to consistent and reliable results.

Specifications

Test Range	500N (or as required)
Stroke	260mm
Speed	1～500mm/min
Gas Pressure	0.6 MPa
Gas Port Size	Ф6 mm
Power	AC 110~220V 50/60Hz

The Yogurt Container Lid Film Peel Tester is an indispensable tool for manufacturers committed to ensuring the quality and safety of their yogurt packaging. By adhering to established industry standards like ASTM F2824 and ISO 17480, this tester supports rigorous quality assurance processes, enhancing product reliability and consumer confidence.

FAQs

1. What types of containers can be tested with this instrument?
   • The tester is suitable for various rigid and semi-rigid containers, including round, oval, and rectangular shapes.
2. How does the tester ensure accurate measurements?
   • The tester utilizes a precision stepping motor and a stable internal structure, ensuring consistent results during each test.
3. Can the angle of pull be adjusted for different tests?
   • Yes, while the standard testing angle is 45 degrees, the tester allows for adjustments to meet specific testing requirements.
4. What is the significance of ASTM F2824 in peel testing?
   • ASTM F2824 provides a standardized method for assessing the mechanical seal strength of flexible peelable lids, ensuring reliable and consistent testing across the industry.
5. Is software included for data analysis, and what are its features?
   • Optional computer software is available, offering advanced data analysis capabilities, including detailed reporting and graphical displays of test results.
