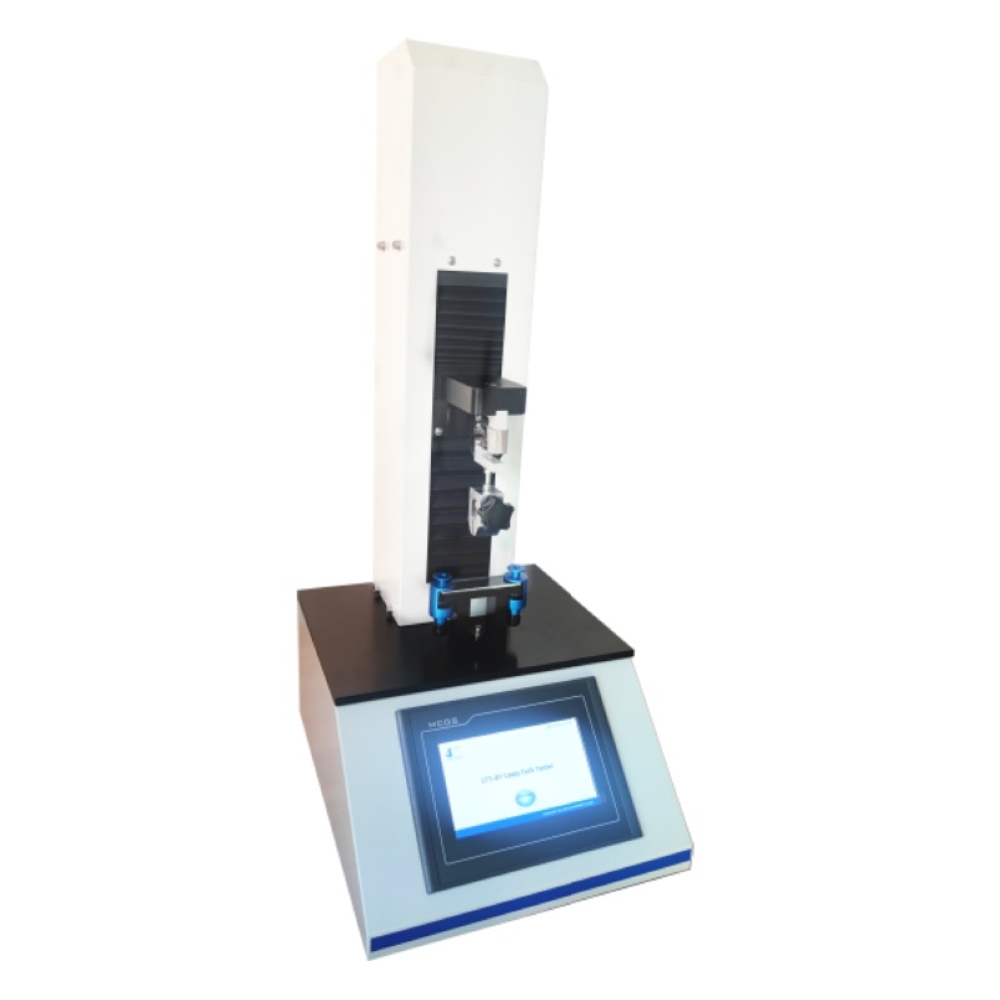

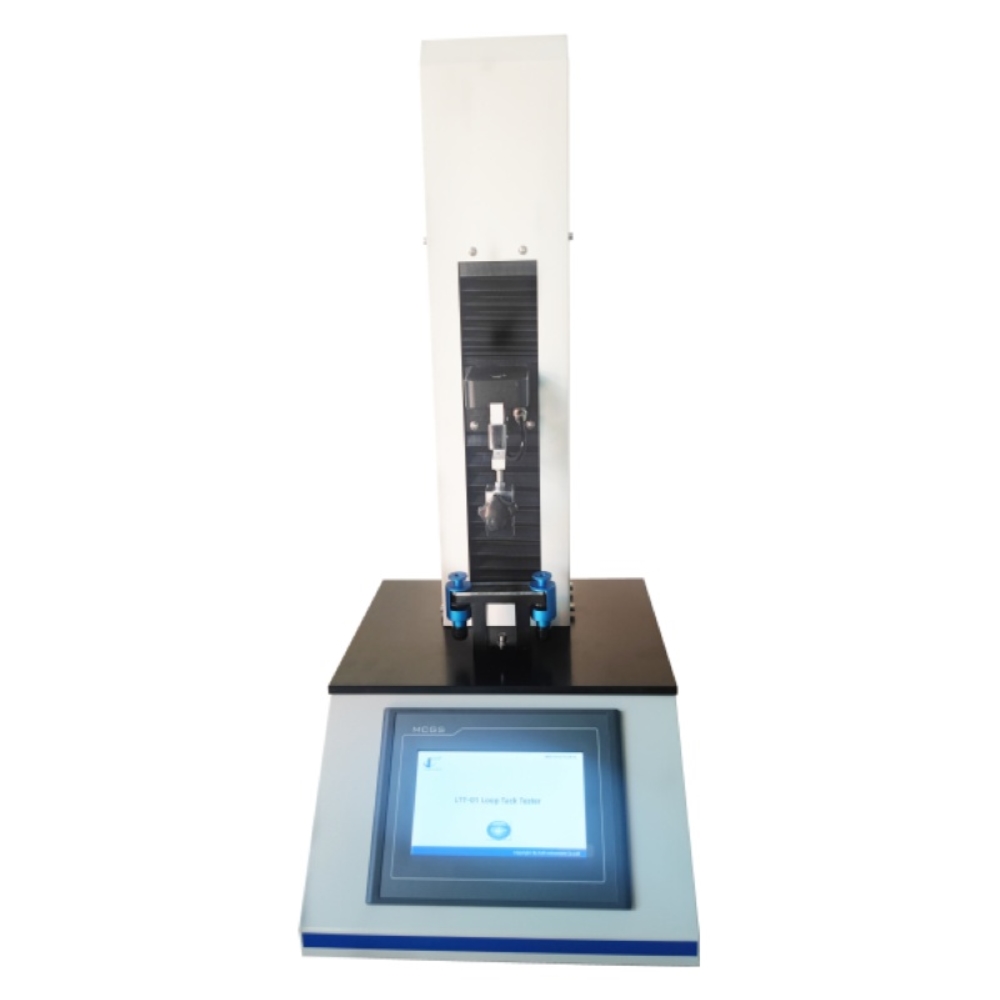

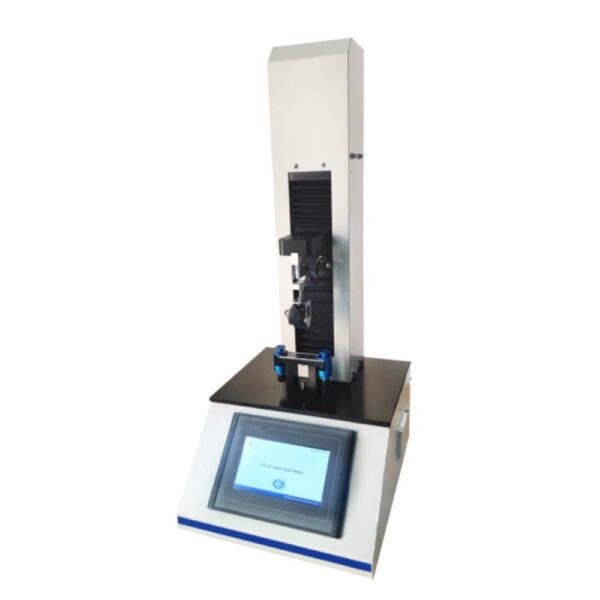

LTT-01 Tape Loop Tack Testing Machine ASTM D6195

The Tape Loop Tack Testing Machine, also known as the LTT-01 Loop Tack Tester, is an advanced testing instrument designed to measure the tackiness, adhesive strength, and sticking force of pressure-sensitive adhesives. This machine is essential for industries where adhesive performance is crucial, including packaging, medical devices, pharmaceuticals, electronics, and quality inspection. Its precision and adherence to established standards make it a reliable tool for manufacturers and quality control teams aiming to ensure optimal adhesive properties.

What is Loop Tack Testing?

Loop tack testing evaluates the initial strength of an adhesive bond when it first contacts another surface. In this test, the tack force—or the force required to separate an adhesive from its contact surface immediately after bonding—is measured. The loop tack test is invaluable for quality assurance, especially for products like tapes, labels, and stickers, where immediate adhesiveness is a critical attribute.

Adherence to ASTM D6195 Standards

The Tape Loop Tack Testing Machine is fully compliant with ASTM D6195, which outlines the standard test method for measuring loop tack of pressure-sensitive adhesives. This standard ensures the accuracy, repeatability, and reliability of results across different testing scenarios.

• ASTM D6195 Test Methodology:
  • A sample adhesive strip, sized at 25mm wide and 175mm long, is formed into a loop and brought into contact with a standard glass plate at a speed of 300mm/min.
  • After making initial contact, the adhesive is separated from the glass at the same speed, and the maximum force required to break the bond is recorded, representing the loop tack.
• Following ASTM D6195 guarantees consistent testing standards, enabling accurate quality assessments of adhesive materials for regulatory and consumer safety.

Key Standards Compliance

In addition to ASTM D6195, the Tape Loop Tack Testing Machine adheres to other global standards, reinforcing its applicability across diverse markets:

• FINAT Test Method No. 9 (FTM-9) – This European standard is widely recognized for testing pressure-sensitive adhesives.
• PSTC-16 Loop Tack – A North American standard dedicated to the tack testing of adhesive tapes.

Features and Technical Specifications

The Tape Loop Tack Testing Machine is equipped with advanced features for precise, reliable tack testing.

• User-Friendly Display: A 7-inch HMI touch screen interface enables easy setup, monitoring, and operation, streamlining the testing process.
• PLC Control: Equipped with Programmable Logic Control (PLC) for high precision and automated testing capabilities.
• Wide Test Range: The instrument covers a test range of up to 200N, allowing flexibility for different adhesive strengths.
• Adjustable Speed Range: Speed options from 1-500 mm/min support diverse testing requirements.
• Precision Mechanics: A precision ball screw system ensures smooth, consistent movements and accurate measurement of speed and displacement, maintaining high testing accuracy.
• Customizable Parameters: Operators can adjust speed, stroke, and dwell time to meet specific testing needs.
• Enhanced Safety: Safety mechanisms include an automatic return function and limiting device, ensuring operator safety during testing.
• Integrated Microprinter: A built-in dot-matrix microprinter allows for instant output of test results for documentation and reporting purposes.
• Standard Compliant Glass Plate: Includes a standard-compliant float glass plate, ensuring accurate tack measurements and consistent test conditions.

Configuration and Accessories

The Tape Loop Tack Testing Machine is equipped with standard and optional components to enhance its versatility and user convenience.

• Standard Configuration:

  • LTT-01 Loop Tack Tester unit
  • Accessories: Glass panel, upper jaw, lower jig, fuses, user manual, calibration certificate, and power cord.

• Optional Configuration:

  • Stainless steel panel for increased durability
  • RS232 port for data communication and transfer
  • COM line and specialized software for advanced data analysis and reporting

Applications of the Tape Loop Tack Testing Machine

This instrument is ideal for a broad range of industries where adhesive reliability is essential, such as:

• Packaging and Labeling – Ensuring that tapes, stickers, and labels maintain their bond immediately after application.
• Medical and Pharmaceutical – Testing adhesive tapes and bandages for consistent performance.
• Food and Beverage – Assuring the quality of packaging seals and adhesive closures.
• Electronics and Daily Chemicals – Verifying the tackiness of adhesive components for safe and reliable usage.

FAQ Section

1. What is loop tack testing, and why is it important?
   Loop tack testing measures the initial bonding strength of adhesives upon contact, which is critical for quality assurance in pressure-sensitive adhesive products.
2. How does the Tape Loop Tack Testing Machine comply with ASTM D6195?
   The machine adheres to ASTM D6195 standards, ensuring reliable, consistent measurement of loop tack force through standardized test parameters.
3. What industries benefit from using the Tape Loop Tack Testing Machine?
   Industries such as packaging, pharmaceuticals, electronics, and quality inspection use this machine to assess adhesive performance in tapes, labels, seals, and other materials.
4. Can the machine be customized for specific testing requirements?
   Yes, the machine offers customizable parameters for speed, stroke, and dwell time, as well as optional accessories like RS232 port and specialized software.
5. What is the range of adhesive materials that can be tested?
   The Tape Loop Tack Testing Machine can test various pressure-sensitive adhesives, including tapes, labels, stickers, and films, across different materials and industries.

The Tape Loop Tack Testing Machine is a robust solution for manufacturers, quality control departments, and testing labs seeking consistent and reliable adhesive performance assessment. With its adherence to ASTM D6195 and other international standards, customizable settings, and safety features, it is the premier choice for high-precision loop tack testing.
