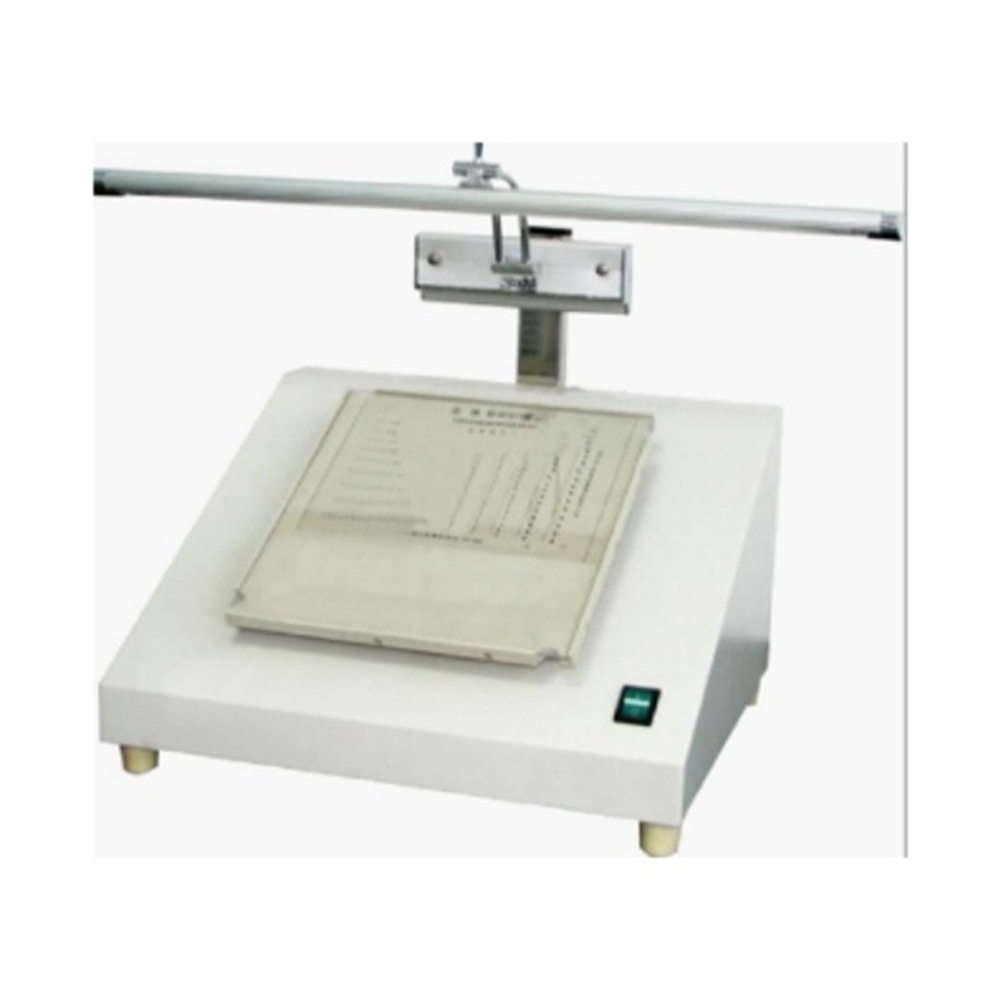

PDT-01 Paper Dirt Tester

Introduction to the Paper Dirt Tester

The PDT-01 Paper Dirt Tester is an essential instrument for measuring the dirt content in paper and board. Designed in accordance with stringent quality standards, including ISO 5350, this tester provides accurate dirt detection to ensure high-quality print and packaging materials. By identifying impurities that could degrade the appearance and performance of paper products, the PDT-01 enhances quality control in industries where presentation is paramount.

Importance of Dirt Testing in Paper and Board

Dirt and other impurities in paper can significantly affect product quality, especially in industries that rely on clear, precise printing. The presence of black, yellow, or brown specks can compromise the aesthetic and functional value of paper, impacting everything from product packaging to printed materials. For applications involving coated paper, cardboard, and whiteboard, especially in color printing, maintaining low dirt levels is essential for vibrant, clear results. The PDT-01 Paper Dirt Tester is a critical tool in detecting and quantifying these impurities, allowing manufacturers to maintain the highest standards of quality.

Overview of ISO 5350 and Related Standards

ISO 5350 is an international standard specifying methods for determining dirt levels in pulp, paper, and board. By following ISO 5350 guidelines, manufacturers can ensure consistent and reliable dirt measurement, supporting high-quality production and customer satisfaction. Additional standards relevant to dirt measurement in paper include:

• TAPPI/ANSI T 437: Defines U.S. methods for visual dirt determination in paper and board.
• TAPPI T 213: Focuses on dirt count methods specifically for uncoated paper, contributing to high print quality.
• GB/T 1541: A Chinese standard for assessing dirt levels in paper and board, providing benchmarks for domestic manufacturing.

By aligning with these standards, the PDT-01 Paper Dirt Tester offers compliance and reliability across global markets.

Features and Specifications of the PDT-01 Paper Dirt Tester

Lighting: Equipped with an AC 220V, 20W fluorescent lamp, ensuring bright and even illumination for identifying dirt particles clearly.

• Lighting Angle: Set at a 60° angle to maintain consistent light distribution across the sample.
• Working Area: A spacious 0.0625 m² test area, fully rotatable 360°, allowing users to inspect each section of the sample thoroughly.
• Standard Dirt Picture Range: Capable of measuring dirt particles ranging from 0.05 to 5.0 mm², providing precise detection across a variety of dirt types and sizes.
• Power Supply: Operates on AC 220V, 50Hz, compatible with standard power systems for ease of use in laboratory and industrial settings.

These features make the PDT-01 an efficient, accurate solution for testing and quality assurance.

Application Areas

The PDT-01 Paper Dirt Tester serves a wide range of industries, including:

• Packaging: Verifies paper quality in boxes, wraps, and other packaging solutions.
• Printing: Ensures high-quality print applications by verifying paper purity and minimizing imperfections.
• Quality Inspection Agencies: Assists in maintaining compliance with industry standards, ensuring consistent paper and board quality.

Testing Methodology for the Paper Dirt Tester

The paper dirt testing process is straightforward, yet comprehensive. The testing methodology includes:

• Preparing a paper or board sample for testing.
• Positioning the sample in the tester’s working area, which is fully rotatable for complete visibility.
• Illuminating the sample under the 60° fluorescent light and visually inspecting for impurities.
• Comparing any observed dirt particles against standard dirt pictures in accordance with ISO 5350 guidelines.

By following this procedure, the PDT-01 enables precise measurement and categorization of dirt particles.

Advantages of Using the PDT-01 Paper Dirt Tester

• High Accuracy: Detects even the smallest dirt particles to ensure precise measurement and better print quality.
• Standard Compliance: Adheres to ISO 5350 and other international standards, supporting global market demands and ensuring high-quality production.
• User-Friendly Design: Designed for frequent testing, with durable construction and an intuitive interface that simplifies the dirt measurement process.

Why ISO 5350 Compliance Matters

ISO 5350 compliance is crucial for any manufacturer aiming to produce high-quality paper and board products. This standard ensures consistent testing methods, giving manufacturers a reliable means to gauge dirt content. Compliance with ISO 5350 and related standards also enhances customer trust, as products that meet these benchmarks are known for their superior quality and reliability.

FAQs

• Q1: What impurities can the Paper Dirt Tester detect?
  The PDT-01 can detect dirt particles and impurities such as black, yellow, and brown specks, which are visibly distinct from the color of the paper.
• Q2: Why is dirt measurement important in paper and board industries?
  Dirt measurement is essential for ensuring high-quality print results, as impurities can compromise the visual and functional quality of printed materials.
• Q3: How does ISO 5350 influence dirt testing standards?
  ISO 5350 sets global benchmarks for dirt measurement, providing consistency and reliability in testing methods for pulp, paper, and board products.
• Q4: Can the PDT-01 test dirt on both coated and uncoated paper?
  Yes, the PDT-01 is suitable for both coated and uncoated paper, offering flexibility across various paper and board types.
• Q5: What are the lighting requirements for the PDT-01 Paper Dirt Tester?
  The PDT-01 is equipped with a 20W fluorescent lamp, providing uniform lighting at a 60° angle for accurate detection.
