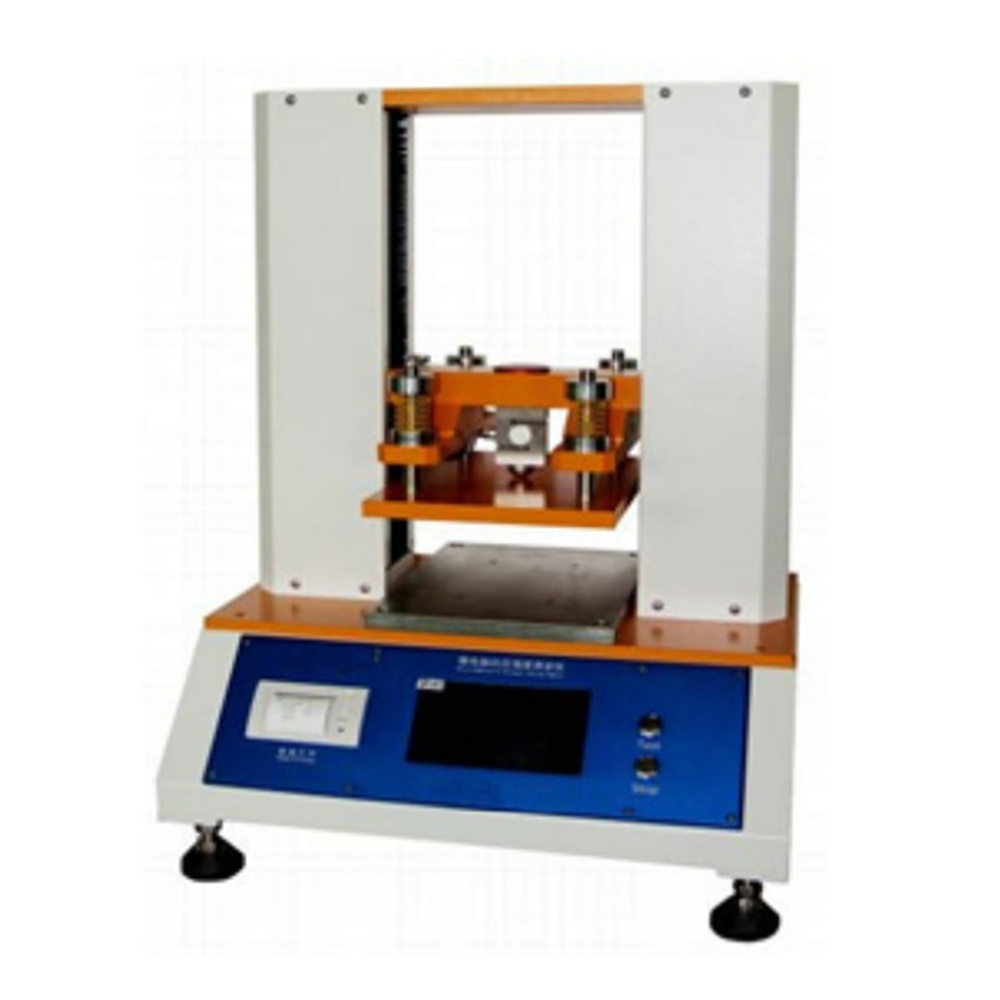

CST-PC Paper Core Compression Tester

Introduction to the Paper Core Compression Tester

The Paper Core Compression Tester (CST-PC) is a specialized instrument designed to measure the compressive and stacking strength of various paper-based products, such as paper tubes, cores, cartons, color boxes, and pallets. This testing device is essential in industries that require durable and reliable packaging solutions, as it helps ensure that paper products meet high standards of quality and performance under pressure.

Whether you’re in packaging, food, medical, or pharmaceutical sectors, using a Paper Core Compression Tester can help you verify that paper tubes or cores won’t buckle under stress, thereby protecting the products inside. Additionally, testing results provide manufacturers with critical data for optimizing product design and enhancing production processes, leading to higher-quality, cost-effective solutions.

Applications of the Paper Core Compression Tester

This versatile tester is ideal for assessing the strength and durability of various paper products, including:

• Compressive Strength Testing: Ensures that paper tubes, cores, and similar packaging components can withstand required pressure loads without deforming.
• Stacking Strength Testing: Verifies that paper-based items, such as small cartons and pallets, retain integrity when stacked, safeguarding against collapse or damage during storage and shipping.

By performing these tests, the Paper Core Compression Tester helps manufacturers improve their packaging products and meet stringent industry standards, especially those in food, medical, and consumer goods sectors where packaging integrity is vital.

Key Benefits and Features of the Paper Core Compression Tester

The CST-PC Paper Core Compression Tester offers an array of features designed to simplify testing processes while ensuring precision and reliability:

• User-Friendly Touchscreen Operation: Streamlines testing with a clear interface.
• Advanced Microcomputer Processing: Provides automated measurement, result interpretation, and a self-return feature, making data collection and analysis seamless.
• High-Precision Sensors: Records real-time compression force and deformation with exceptional accuracy.
• Data Management: The device includes an embedded thermal micro-printer for instant results and options for real-time data display, tracking, and exporting.
• Durable Build with Synchronous Motor: Includes a robust drive system with a synchronous motor and high-quality thread lead screw, enhancing durability and maintaining consistent testing speeds.

These features make the Paper Core Compression Tester a reliable and versatile tool for quality control, suitable for frequent and high-precision testing in industrial environments.

Test Principle and Methodology

To ensure accurate, repeatable results, the testing process follows a consistent methodology:

• Sample Preparation: Each paper tube or core is carefully prepared and positioned on the tester to ensure stability and even pressure distribution, aligning with industry standards.
• Testing Procedure: The tester’s upper plate applies a controlled, vertical force to the paper tube at a constant speed. Equipped with a high-precision sensor, the tester captures and records compression data, revealing the sample’s mechanical response under pressure. This data provides a reliable basis for assessing compressive strength and evaluating product durability.

Compliance with ISO Standards: ISO 12048, ISO 2872, ISO 2874

Compliance with ISO standards is critical for ensuring that packaging materials meet global quality benchmarks. The Paper Core Compression Tester conforms to several key ISO standards, providing users with confidence in its testing reliability:

• ISO 12048: This standard specifies methods for compression and stacking testing of transport packages, evaluating their structural performance to ensure product safety.
• ISO 2872: Focused on board and paper packaging, this standard defines procedures for compression testing to determine packaging strength during storage.
• ISO 2874: This standard outlines the stacking test requirements for fully packed transport packages, essential for certifying that products can endure stacked loads during distribution.

These standards establish uniform testing criteria, ensuring that the data from the Paper Core Compression Tester is accurate, repeatable, and in line with international best practices for packaging quality.

Why ISO Standards Matter in Compression Testing

Adhering to ISO standards such as ISO 12048, ISO 2872, and ISO 2874 is essential for maintaining quality and safety in packaging. By following these standards, manufacturers and quality control professionals ensure that packaging products can withstand the rigors of storage and transportation without compromising the safety of the contents. The Paper Core Compression Tester’s compliance with these standards enables manufacturers to meet both regulatory and customer expectations for reliable packaging performance.

Technical Specifications of the Paper Core Compression Tester

The CST-PC offers precise and reliable testing through advanced technical specifications:

• Compression Force Range: Capable of handling a broad range of force levels to accommodate different material strengths.
• Maximum Load Capacity: Ensures sufficient capacity for robust testing of various paper products.
• High Accuracy Levels: Delivers precise force measurements, minimizing error and increasing test reliability.
• Measurement Units and Speed Control: Provides flexible options for controlling testing speeds and measuring units to match specific standards and materials.

These specifications contribute to the instrument’s overall accuracy, durability, and ease of use, making it an essential tool for quality assurance in packaging material testing.

Frequently Asked Questions (FAQ)

1. What types of products can be tested with the Paper Core Compression Tester?
   • This tester is suitable for a variety of paper-based products, including paper tubes, pallets, cartons, and other packaging materials requiring compression and stacking strength testing.
2. How does the Paper Core Compression Tester ensure accuracy?
   • The device is equipped with high-precision sensors and a synchronous motor that delivers consistent pressure application, ensuring reliable data for accurate performance evaluation.
3. Why are ISO 12048, ISO 2872, and ISO 2874 standards important?
   • These standards define the methods for compression and stacking testing, helping manufacturers confirm that their packaging products meet industry-recognized quality and safety standards.
4. Can the Paper Core Compression Tester be customized for unique testing needs?
   • Yes, we offer customization options to meet specific testing requirements and unique applications in diverse industries.
5. How is data collected and stored during testing?
   • The tester’s microcomputer system captures data in real-time, with options for instant printout via an embedded thermal printer, as well as exporting and tracking results for easy analysis and documentation.
