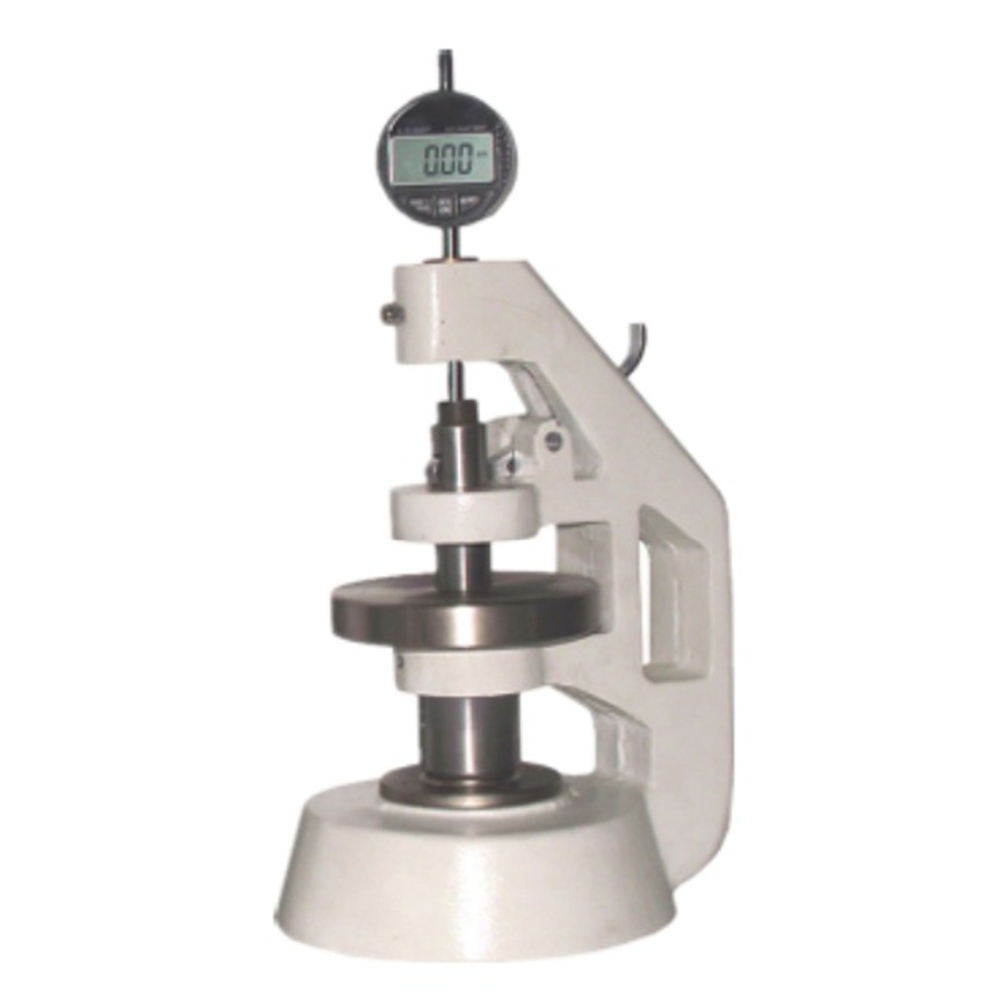

PBT-01 Paper Board Thickness Tester

Paper Board Thickness Tester Introduction

The PBT-01 Paper Board Thickness Tester is an advanced, high-precision instrument designed specifically to measure the thickness of single sheets of corrugated fibreboard. This device plays a vital role in quality control for packaging materials, as accurate thickness measurements are essential in determining the durability and strength of fibreboard used in manufacturing packing cases and other packaging solutions. Suitable for all types of corrugated fibreboard, the PBT-01 ensures that packaging materials meet stringent quality standards for protection and reliability.

Importance of Accurate Thickness Measurement in Packaging

Accurate thickness measurement is crucial in the packaging industry, where consistency in board thickness impacts the protective qualities and structural integrity of the final product. The PBT-01 paper board thickness tester helps manufacturers and quality control professionals verify that each sheet meets precise thickness requirements, optimizing material performance and helping maintain product quality during transit. Reliable thickness measurement prevents material wastage, reinforces packaging stability, and upholds regulatory compliance in packaging quality.

Testing Principle and Methodology of Paper Board Thickness Tester

• Principle of Thickness Measurement The PBT-01 measures corrugated board thickness by placing the board sample between two parallel, circular pressure faces under a specific static load. This high-precision test applies the necessary pressure to capture the board’s thickness with unmatched accuracy.
• Displacement Thickness Testing Method Using the displacement thickness testing method, the PBT-01 employs one fixed face (the anvil) and a movable face that applies uniform pressure as it measures the thickness. The movable face exerts a consistent 20 kPa ± 0.5 kPa pressure, ensuring that the results are accurate and reproducible. The instrument is capable of measuring thicknesses ranging from 0 to 20 mm, with a resolution of 0.001 mm, making it a reliable choice for both standard and specialized testing needs.

Instrument Structure and Technical Specifications

• Pressure Faces and Contact Area The PBT-01’s two circular pressure faces are designed for optimal accuracy. The anvil is stationary, while the second face moves perpendicularly to apply pressure evenly at a rate of 2 mm/s to 3 mm/s. The circular pressure faces measure 35.7 mm ± 0.3 mm in diameter, with a contact area of 1000 mm² ± 20 mm². This configuration ensures that the test pressure is distributed uniformly, giving precise thickness readings.
• Technical Features The PBT-01 Paper Board Thickness Tester includes essential technical features:


  Test Range	0～20 mm
  Resolution	0.001mm
  Contact Area	1000±20 mm²
  Contact Pressure	20±2kPa
  Measuring surface parallelism	≤0.035mm
  Display error	±0.05％

Compliance with Industry Standards

The PBT-01 Paper Board Thickness Tester is engineered in line with industry standards for testing corrugated fibreboard and packaging materials, ensuring that it meets the technical accuracy requirements of these guidelines. Adherence to these standards is essential for reliable and consistent measurements in professional packaging applications, reinforcing the tester’s role in delivering quality control and compliance across industries.

Advantages of the PBT-01 Paper Board Thickness Tester

The PBT-01 offers unique advantages that set it apart in the field of material testing:

• High Precision: With 0.001 mm resolution, the PBT-01 guarantees high-precision measurements for reliable quality control.
• Versatile Applications: Suitable for all types of corrugated fibreboard, making it a versatile choice for different packaging types.
• User-Friendly Design: Features like the ZERO reset function and simple power controls enhance ease of use.
• Enhanced Quality Control: Ensures consistent thickness measurement for improved packaging durability and material savings.

Applications Across Industries

The PBT-01 Paper Board Thickness Tester is widely applicable across industries, including packaging, food, pharmaceuticals, and quality inspection agencies. With its precise and consistent measurements, the PBT-01 thickness gauge enables companies to maintain strict quality control over packaging materials, supporting the development of durable and dependable packaging solutions across sectors.

Frequently Asked Questions (FAQ)

1. What is corrugated fibreboard?
   • Corrugated fibreboard consists of one or more sheets of fluted paper glued to a flat sheet of board or between several sheets. It is a popular material in packaging due to its strength and shock-absorbing properties.
2. What is meant by “single sheet thickness of corrugated fibreboard”?
   • Single sheet thickness refers to the distance between one surface of a corrugated fibreboard sheet and the opposite surface, measured under a specific applied static load.
3. How accurate is the PBT-01 in measuring thickness?
   • The PBT-01 provides high precision with a resolution of 0.001 mm and an accuracy rate of ±0.05%, making it a reliable choice for consistent and reproducible measurements.
4. Why is contact pressure important in thickness testing?
   • Applying consistent contact pressure during testing ensures that the measurement accurately reflects the board’s thickness without compression variances, thus providing repeatable and reliable results.
5. What industries benefit from using the PBT-01 Thickness Tester?
   • The PBT-01 is essential for packaging, food, pharmaceuticals, and other industries where material quality and packaging reliability are critical to product protection and safety.
