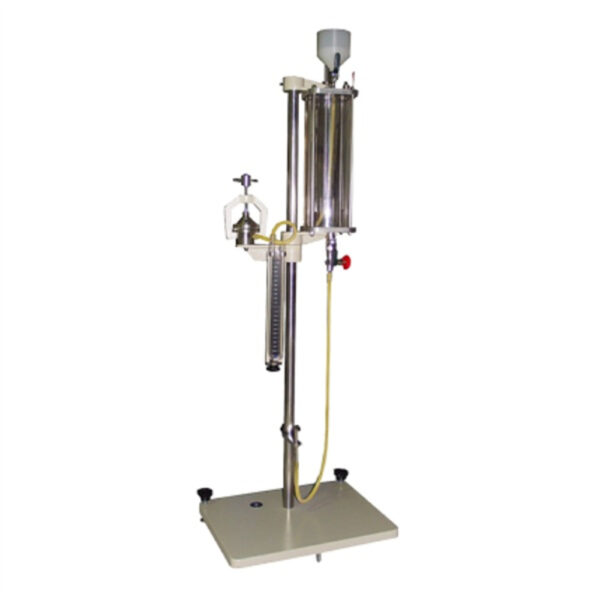

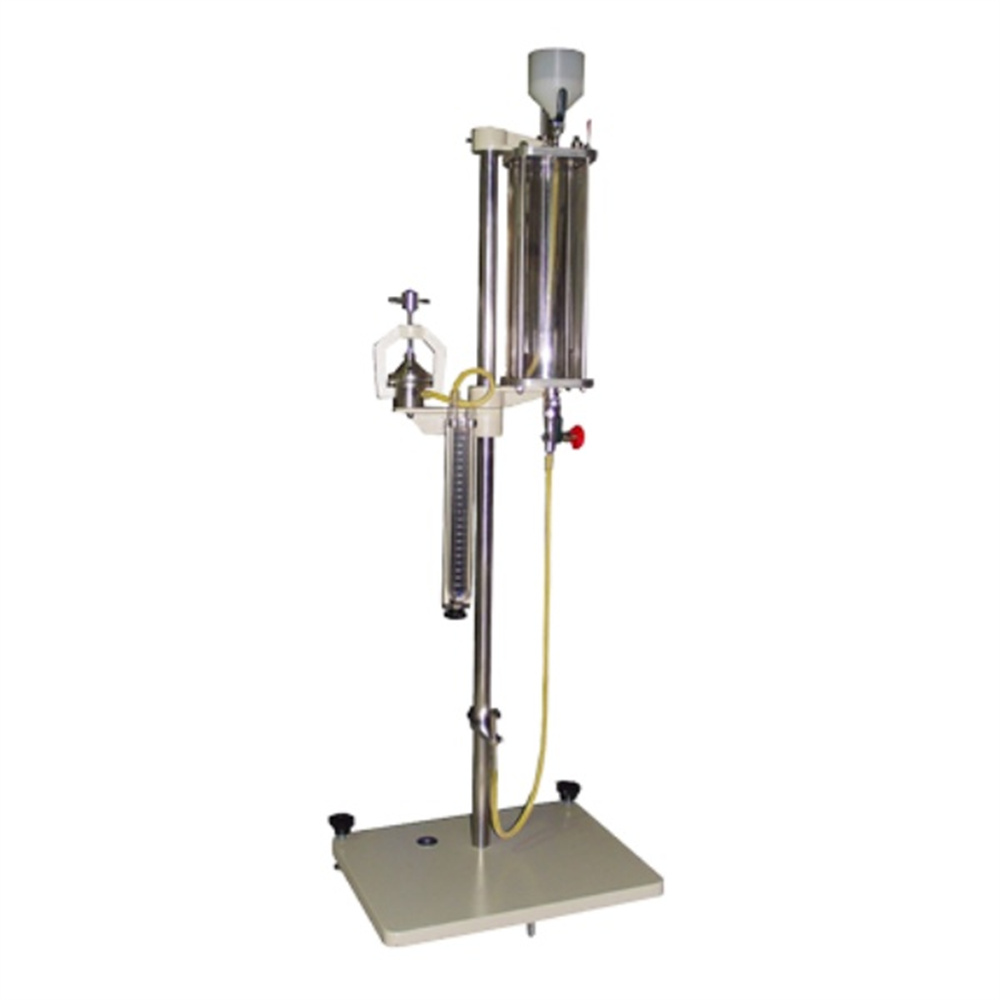

Introduction to the Paper Air Permeance Tester
The Paper Air Permeance Tester is an essential tool for determining the air permeability of paper and cardboard materials, making it crucial for industries such as packaging, paper manufacturing, and textiles. This tester uses the Schopper method to measure the flow of air through materials, providing accurate and reliable results for papers and boards with air permeance values ranging from 1×10^-2 to 1×10² µm/(Pa·s). The paper air permeance tester is designed to meet international testing standards, ensuring that the materials meet specific requirements for air permeability, which is critical for their performance in packaging, filtration, and other applications.
The tester is ideal for use with a variety of paper types, including copy paper, cement bag paper, industrial filter paper, and paper bags. However, it is not suitable for rough-surfaced materials, such as creped or corrugated papers, that cannot be securely clamped to prevent leakage.
Key Features
- Precise Measurement: Accurately measures the air permeance of paper and board materials.
- Schopper Method: Uses the standardized Schopper method for consistent, repeatable results.
- Wide Material Compatibility: Suitable for testing a wide range of paper types, including industrial filter paper, cement bags, and copy paper.
- Standards Compliance: Meets multiple international and industry standards for air permeability testing.
- Ease of Use: Simple and intuitive operation for quick testing and data collection.
How the Paper Air Permeance Tester Works
The paper air permeance tester works by clamping a sample of paper or board between two airtight circular gaskets. One side of the sample is exposed to atmospheric pressure, while a small, controlled pressure difference is maintained across the test area. The tester then measures the flow of air through the sample under these conditions, calculating the air permeance based on the airflow rate and pressure difference.
Test Method
- Sample Preparation: The paper sample is clamped securely between the two gaskets to avoid any leakage.
- Pressure Control: A small but constant pressure difference is applied across the sample to simulate real-world conditions.
- Measurement: The tester measures the volume of air flowing through the paper sample over a set time period, calculating the air permeance in micrometres per pascal second (µm/(Pa·s)).
This method ensures that the results are reliable and representative of the paper’s true air permeability, making the paper air permeance tester an essential tool for material performance evaluation.
Applicable Standards for the Paper Air Permeance Tester
The paper air permeance tester adheres to several key international and industry standards, ensuring that your testing process is both accurate and consistent with global best practices:
- ISO 5636-2: Standard for the measurement of air permeance in paper and board using the Schopper method.
- ISO 5636-3: Specifies the methods for air permeance measurement in various paper and board materials.
- ISO 5636-5: Additional guidelines for testing air permeance under varying environmental conditions.
- GB/T 458: Chinese national standard for determining air permeance in paper and cardboard.
- QB/1667: Industry-specific standard for air permeability testing in packaging materials.
Importance of Standards Compliance
By complying with these standards, the paper air permeance tester ensures that your results are consistent and globally recognized. This is crucial for industries where regulatory compliance and quality control are vital, such as in packaging materials used in the food and pharmaceutical sectors.
Main Parameters
| Test Range | 1～1000）ml/min or 0~17um/(Pa.s) |
| Test Area | 10±0.2cm² |
| Test Area Pressure Difference | 1±0.01kpa |
| Accuracy | <100ml volume error 1ml |
| >100ml volume error 5ml | |
| Clamp Ring Inner Diameter | 35.68±0.05mm |
| Clamp Rings Center Coaxiality | <0.05mm |
| Dimensions | 400*300*1200mm |
Applications of the Paper Air Permeance Tester
The paper air permeance tester has a wide range of applications across various industries that require precise measurement of air permeability in paper-based products:
- Packaging: For testing materials such as paper bags, cement bags, and industrial filter paper, ensuring their suitability for packaging applications.
- Textiles: Measuring air permeability in paper materials used in textile applications, such as paper-based filters.
- Food and Pharmaceuticals: Ensuring the proper air permeability for paper packaging materials used in the food and pharmaceutical industries to guarantee product protection and quality.
- Quality Control: Ensuring that all paper products meet specific air permeance standards for their intended applications.
Advantages of the Paper Air Permeance Tester
- Precision and Accuracy: The paper air permeance tester delivers reliable, repeatable results, helping manufacturers ensure product quality and compliance.
- Wide Range of Applications: Can be used to test a variety of paper types, from industrial filter papers to packaging materials.
- Compliance with Standards: Meets international standards for air permeance testing, ensuring consistency and reliability.
- Easy Operation: Simple and user-friendly interface for fast and efficient testing in any laboratory or production environment.
Conclusion
The Paper Air Permeance Tester is an indispensable tool for manufacturers, quality control laboratories, and research institutions that need to measure the air permeability of paper and board materials. By using the Schopper method, it ensures accurate and consistent results that meet international testing standards. Whether you’re in packaging, textiles, food, or pharmaceuticals, the paper air permeance tester offers essential performance data to guarantee the quality and reliability of your paper-based products.
With its ease of use, versatility, and precision, this tester is a valuable addition to any laboratory or quality control process, ensuring your materials perform as expected under real-world conditions.
