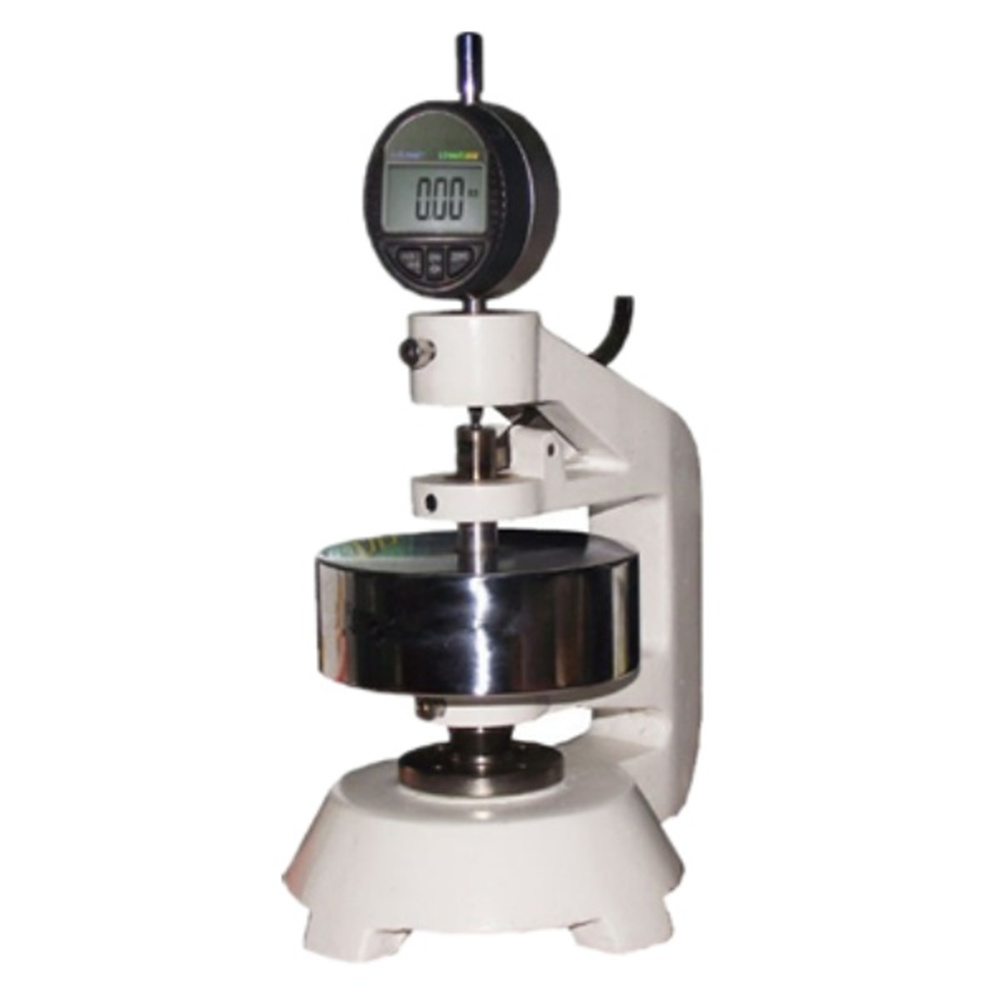

ZBH-01 Paperboard Thickness Gauge

Introduction to the Paperboard Thickness Gauge

The Paperboard Thickness Gauge is an essential tool designed to measure the precise thickness of paper and paperboard, ensuring consistency and quality across materials. This gauge is widely used in industries like packaging, food and beverage, medical, and electronics, where accurate thickness measurements are crucial for product quality and regulatory compliance. With high precision and user-friendly features, this gauge meets the demands of quality control and product development professionals.

Key Features and Applications

The ZBH-01 Paper and Board Thickness Tester stands out with its advanced features, ensuring accurate and reliable results for both single-sheet thickness and bulking thickness measurements. Key features include:

• Reset Zero at Any Point: Simplifies calibration and ensures accuracy with every measurement.
• ON/OFF Power Switch: Extends battery life and optimizes usability.
• Measurement Units Conversion: Allows users to switch units as needed for different testing requirements.

Applications: This thickness gauge is ideal for measuring single-sheet and bulking thickness in paper and board materials. It can measure both individual sheet thickness and the thickness of multiple sheets in a stack for bulk analysis. Note: This device is not intended for corrugated fiberboard.

Understanding Thickness Measurements

• Single Sheet Thickness: Measures the distance between two surfaces of a single sheet of paper or board under a specified static load.
• Bulking Thickness: Calculates thickness by measuring several sheets in a stacked pack, which is particularly useful for applications requiring bulk material analysis.

Importance of ISO 534 in Paperboard Thickness Measurement

ISO 534 is the international standard that specifies methods for determining the thickness of paper and board materials. It defines requirements for testing accuracy, calibration, and equipment specifications, making it essential for ensuring reliable and repeatable thickness measurements. The ZBH-01 Paper and Board Thickness Tester is calibrated to meet ISO 534 standards, ensuring that it provides consistent, compliant results. Related standards, such as GB/T 451.3, also support these quality measures.

Technical Specifications of the Paperboard Thickness Gauge

• Test Range: 0–4 mm, allowing for measurements across various paperboard types.
• Resolution: High precision with a resolution of 0.001 mm for exact measurements.
• Contact Area: 200±5 mm², aligning with ISO 534 requirements for uniform measurement.
• Contact Pressure: 100±10 kPa, as defined in ISO 534, to maintain measurement integrity.
• Measuring Surface Parallelism: ≤0.005 mm, which ensures the accuracy of each reading.
• Display Error: ±0.05%, providing highly accurate readings for consistent quality control.

How the Paperboard Thickness Gauge Works

The ZBH-01 Paper and Board Thickness Tester features two circular pressure faces for stable measurement. The fixed lower face (anvil) and the movable upper face create an optimal testing surface, conforming to ISO 534 guidelines. The upper face moves perpendicular to the anvil and ensures precise contact. The Reset Zero function allows the gauge to be calibrated before each use, ensuring dependable, repeatable results for each measurement.

Paperboard Thickness Gauge

• What is single sheet thickness?
  Single sheet thickness is the measurement of distance between two surfaces of a single sheet under a static load, providing a reliable assessment of individual paper thickness.
• What is bulking thickness?
  Bulking thickness measures the collective thickness of multiple sheets in a stack, useful for assessing materials in bulk.
• How does ISO 534 impact measurement accuracy?
  ISO 534 defines test parameters and calibration standards, ensuring consistency and reliability in thickness measurements across applications.
• Can the gauge be used for corrugated fiberboard?
  No, it is not suitable for corrugated fiberboard due to its unique structural properties.
• Is it possible to convert measurement units?
  Yes, the gauge supports unit conversion, allowing flexibility for different testing requirements.

Benefits of Using the Paperboard Thickness Gauge for Quality Control

Using the Paperboard Thickness Gauge provides several key benefits:

• Product Reliability: Ensures that each batch meets specified thickness criteria, maintaining product quality and uniformity.
• Regulatory Compliance: Aligns with ISO 534, which is essential for compliance in regulated industries.
• Enhanced Quality Assurance: Helps prevent material waste, optimize production, and meet industry standards.

The Paperboard Thickness Gauge is an indispensable instrument for achieving accurate, repeatable thickness measurements in compliance with ISO 534. With its high precision, ease of use, and adherence to industry standards, the ZBH-01 is ideal for manufacturers and quality inspectors seeking reliable thickness data. Choose the ZBH-01 for its advanced features and precise, user-friendly design to enhance quality control in your operations.
