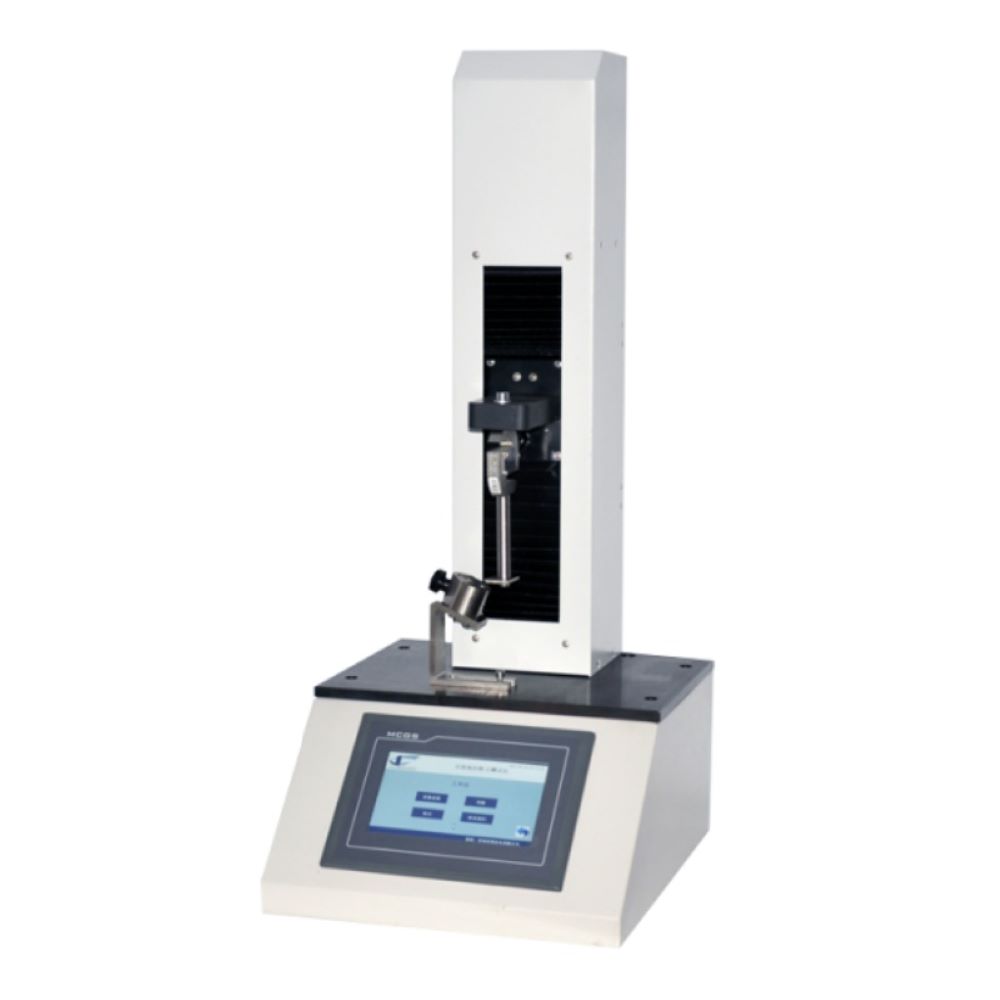

Injection Vial Cap Open Force Tester | Removal Test

1. Introduction

The Injection Vial Cap Open Force Tester is a specialized instrument designed to evaluate the opening force required for aluminum-plastic combination caps used in pharmaceutical packaging. Ensuring the integrity and reliability of these closures is critical for maintaining product safety and efficacy. This tester plays a vital role in quality control, helping manufacturers meet regulatory requirements and enhance consumer trust.

2. Application

Aluminum-plastic combination caps are widely used in the packaging industry for sealing bottles containing pharmaceuticals, beverages, and cosmetics. These closures effectively combine the strength and barrier properties of aluminum with the flexibility and cost-effectiveness of plastic. The robust design ensures tamper evidence and helps maintain the product’s integrity, making them ideal for the pharmaceutical industry where safety and reliability are paramount.

3. Composition of Aluminum-Plastic Combination Caps

• Aluminum Component: The outer shell of these caps is often made of aluminum, providing a robust and tamper-evident closure with an attractive finish. Its strength offers superior protection against environmental factors.
• Plastic Component: Typically utilized for the inner liner or closure mechanism, plastic ensures a tight seal while allowing for ease of opening. This combination of materials maximizes functionality and user convenience.

4. Testing Methods and Standards

• ISO 8872: This standard outlines the testing methods for determining the tab tear-off force, which is critical for ensuring ease of use and functionality.
• ISO 10985: Specifies the force required to remove plastic components, ensuring that caps are both secure and user-friendly.
• ISO 8536 Series: Covers the tensile and elongation force tests for aluminum parts, essential for assessing the mechanical properties of the closure materials.
• Other Relevant Standards:
  • ISO 7500-1: General requirements for testing machines.
  • ISO 8362-6 and ISO 8362-7: Focus on the specifications for injection vials and closures, ensuring compatibility and performance.

5. Force Tests on Aluminum-Plastic Combination Caps

The Injection Vial Cap Open Force Tester can conduct several critical tests, including:

1. Tab Tear-Off Force: Evaluates the force required to remove the tab, ensuring user accessibility.
2. Force Required to Pull Off Plastic Components: Measures the integrity of the plastic parts of the cap.
3. Tensile and Elongation Force for Aluminum Parts: Assesses the strength and flexibility of the aluminum component, crucial for maintaining seal integrity during handling.

6. Technical Features of the Injection Vial Cap Open Force Tester

• Industrial-Grade PLC Control System: Offers stable, accurate, and easy operation through a user-friendly HMI interface.
• Versatile Testing Capabilities: Compatible with various accessories for tensile, compression, breaking force, hardness, peel, opening, puncture, and push-pull tests.
• Real-Time Data Processing: Displays test results in real-time, facilitating immediate analysis.
• Microprinter for Result Preservation: Equipped with a dot-matrix printer to ensure long-term preservation of test results.
• Safety Features: Includes power-off parameter memory, overload protection, limit protection, and automatic return at the end of tests.
• Communication Interface: Features an RS232 interface and optional professional software for enhanced data management.

7. Wide Applications

The Injection Vial Cap Open Force Tester is suitable for a variety of tests conducted within the medical packaging industry, ensuring the quality and safety of packaging materials and components. Applications include:

• Ampoule bottle breaking force tests.
• Infusion bottle cap opening force and tear tab tear force tests.
• Heat seal strength, tensile strength, peel strength, and elongation tests for aluminum foil, PVC sheets, and composite films.

8. Conclusion

The Injection Vial Cap Open Force Tester is essential for manufacturers seeking to guarantee the safety and reliability of their aluminum-plastic combination caps. By adhering to industry standards and conducting rigorous testing, manufacturers can ensure product integrity and enhance consumer trust. Invest in the Injection Vial Cap Open Force Tester to elevate your quality assurance processes.

9. FAQs

1. What is the purpose of the Injection Vial Cap Open Force Tester?
   • It measures the force required to open aluminum-plastic combination caps, ensuring ease of use and product integrity.
2. Which standards does this tester comply with?
   • The tester complies with ISO 8872, ISO 10985, and ISO 8536 among others, ensuring rigorous testing methods.
3. Can the tester be used for different types of caps?
   • Yes, it is compatible with various cap types, including those used in pharmaceuticals, beverages, and cosmetics.
4. What technical features enhance its usability?
   • It features a PLC control system, real-time data display, and a microprinter for preserving test results.
5. Is the tester suitable for both research and production environments?
   • Absolutely, it is designed for versatility, making it suitable for both laboratory and production line testing.
