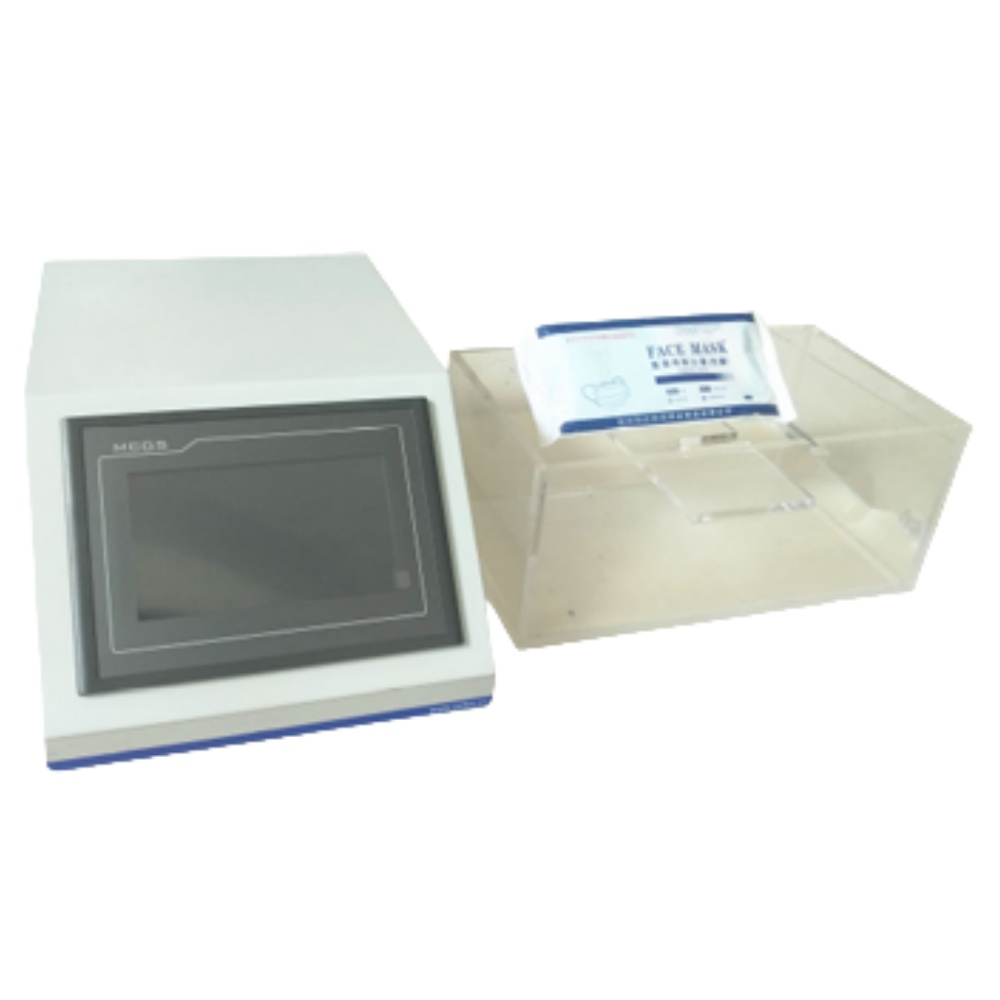

GLT-01 Gross Bubble Leak Test Equipment

Introduction to Bubble Leak Test Equipment

Bubble leak test equipment is essential for assessing the integrity of packaging seals, ensuring that products remain protected during storage and transportation. By accurately detecting leaks, this equipment plays a vital role in maintaining product quality and safety across various industries, including pharmaceuticals, medical devices, food packaging, and more.

Importance of Leak Testing

Evaluating package seal integrity is crucial for verifying that packaging can deliver the necessary product protection. Leak testing helps assess sustainable packaging alternatives and cost-effective packaging options, as well as variations in production line sealing parameters. By maintaining the reliability of package seals, companies can uphold the quality and safety of their products, ultimately safeguarding their brand reputation.

Overview of ASTM F2096

What is ASTM F2096?

ASTM F2096 is a standard that outlines the procedure for detecting gross leaks in both porous and non-permeable packaging materials using internal pressurization. This method is commonly known as the bubble test.

Test Methods Described by ASTM F2096

The standard provides a systematic approach to identifying gross leaks through a bubble test, where internal pressure is applied to the packaging material. This method is crucial for ensuring that packaging remains intact and effective in protecting its contents.

Other Relevant ASTM Standards

• ASTM D3078: This standard utilizes bubble emission testing for gas-filled and liquid-filled packages, helping to identify leaks that may compromise product integrity.
• ASTM D4991: Similar to D3078, this standard focuses on bubble emission testing for empty rigid containers.
• ASTM F2338: This standard employs vacuum decay testing methods for flexible and rigid containers to evaluate seal integrity.
• ASTM F2054/F1140: These standards outline pressure decay testing methods for various packaging types, including flexible, rigid, and tubular forms.

Test Description

The bubble leak testing process involves immersing the inspected sample in a water medium while generating a pressure difference between the inside and outside of the package. If a leak is present, the high-pressure gas will escape through the leak point, creating visible bubbles in the water. This simple yet effective method enables accurate leak detection, ensuring the packaging’s reliability.

Technical Features

• PLC-Controlled Unit: Our bubble leak test equipment is designed with industrial-level stability, featuring a PLC-controlled unit for consistent performance.
• HMI Touch Screen Operation: User-friendly interface for easy operation and monitoring of testing parameters.
• Stable Gas Supply: Ensures a reliable and consistent supply of gas during testing.
• Optional Integration: The equipment can be integrated with pressure decay test methods for enhanced testing capabilities.

Main Parameters

Test Range	0~30KPa (or as required)
Chamber Acrylic	34*20*15cm LWH
Compressed Air	0.6MPa (Prepared by user)
Power	110~220V 50/60Hz

Bubble leak test equipment is crucial for ensuring the integrity of packaging seals, making it an indispensable tool for quality assurance across various industries. By choosing Cell Instruments’ bubble leak test solutions, you can enhance the reliability of your packaging and safeguard your products.

FAQs

1. What types of packages can be tested with bubble leak test equipment?
   • The equipment is suitable for both porous and non-permeable packaging materials, including flexible and rigid containers.
2. How does the bubble test work?
   • The bubble test involves applying internal pressure to the package while submerged in water. Bubbles produced at the leak point indicate a failure in the seal.
3. Is the bubble leak test method destructive?
   • Yes, the bubble leak test is a destructive method, meaning it may compromise the integrity of the packaging being tested.
4. Can the equipment be customized for specific testing needs?
   • Yes, we specialize in customizing testing requirements to meet your specific needs.
5. What standards does the bubble leak test equipment comply with?
   • Our equipment complies with ASTM F2096 and other relevant ASTM standards for leak testing.
