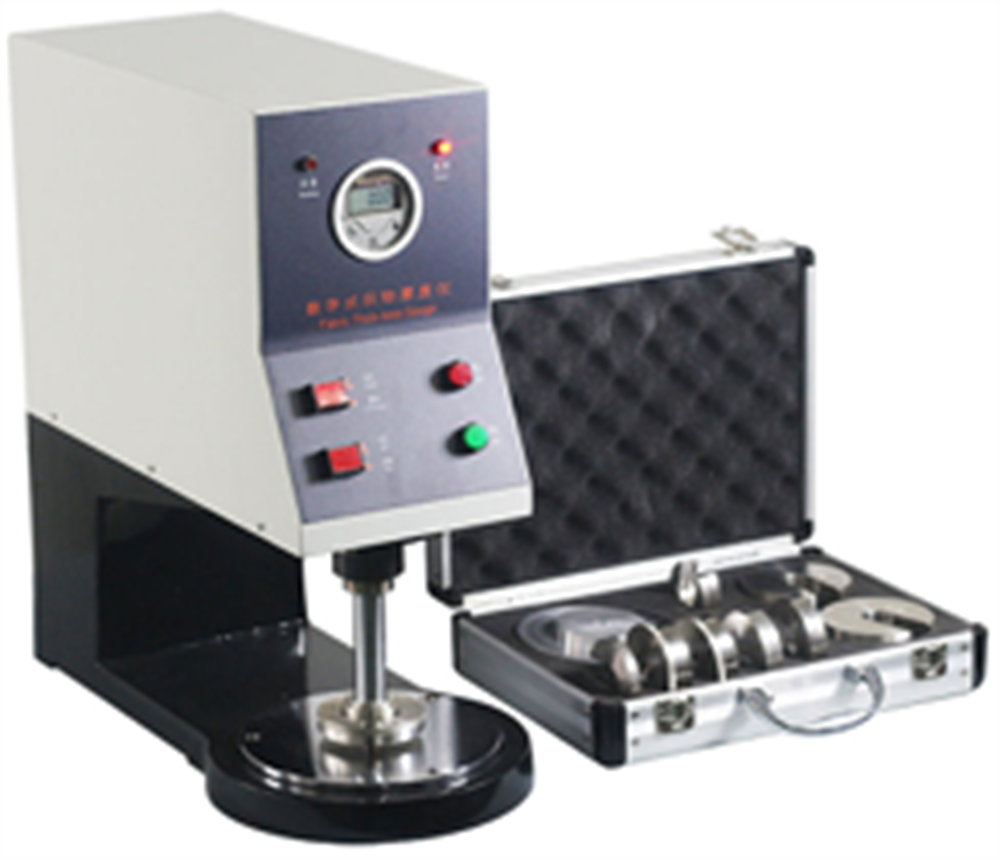

FTT-02 Fabric Thickness Tester

The FTT-02 Fabric Thickness Tester is a highly precise instrument designed to measure the thickness of various fabrics, including melt-blown non-woven, spun-bonded, SMS (spun-bond/melt-blown/spun-bond), spunlace, needle-punched, woven, and knitted fabrics. Engineered for reliability and accuracy, it ensures compliance with global testing standards, making it an essential tool for industries such as textiles, medical devices, packaging, and quality inspection.

Applications of the FTT-02 Fabric Thickness Tester

The FTT-02 is versatile and ideal for a wide range of materials, including:

• Melt-blown and spun-bonded non-woven fabrics.
• SMS non-woven fabrics for medical and hygiene products.
• Spunlace and needle-punched fabrics used in upholstery and industrial applications.
• Woven and knitted textiles for clothing and technical fabrics.

This makes it a critical device for industries such as packaging, medical, pharmaceuticals, textiles, and quality assurance agencies.

Features and Benefits

Precision Measurement

• Measurement range: 0.001–25mm with a resolution of 0.001mm, ensuring highly accurate results for critical applications.

Testing Flexibility

• Options for single or continuous testing provide adaptability for various operational needs.

Customizable Weights and Settings

• Adjustable presser foot sizes: 11.28mm, 50.48mm, 56.42mm, and 112.84mm.
• Multiple contact area sizes: φ100, φ2000, φ2500, φ10000mm².
• Weight options ranging from 5cN to 500cN and press time settings of 10s and 30s for tailored testing.

User-Friendly Design

• Compact dimensions (410 × 160 × 395mm) and a manageable weight (35kg) ensure ease of setup and operation.
• Operates on a standard 220V, 50Hz power supply.

Standards Compliance

The FTT-02 Fabric Thickness Tester is designed to meet and exceed the requirements of the following global standards:

• ISO 5084: Standard for measuring the thickness of textiles under specific pressure.
• ISO 9073-2: Thickness determination for non-woven fabrics.
• ISO 9863: Guidelines for geosynthetics thickness measurement.
• ASTM D1777: Thickness measurement methods for textile materials.
• GB/T 24218.2 & GB/T 3820: Chinese standards for fabric thickness testing.
• FZ/T 01003 & FZ/T 60004: Standards for specific textile products in the Chinese market.

These certifications ensure the tester is suitable for both domestic and international applications.

Technical Specifications

Parameter	Details
Measurement Range	0.001–25mm
Resolution	0.001mm
Presser Foot (mm)	11.28, 50.48, 56.42, 112.84
Contact Area (mm²)	φ100, φ2000, φ2500, φ10000
Weight Options (cN)	5, 10, 50, 100, 200, 500
Press Time Settings	10s, 30s
Dimensions (mm)	410 × 160 × 395
Weight (kg)	35
Power Supply	220V, 50Hz

How the Fabric Thickness Tester Works

1. Sample Preparation: Place the fabric sample securely on the testing platform.
2. Presser Foot Adjustment: Choose the appropriate presser foot size and contact area for the material.
3. Weight and Press Time: Apply the desired weight and set the press time (10s or 30s).
4. Measurement: The instrument measures thickness based on the specified settings, providing precise results that are critical for quality assurance.

Advantages in Various Industries

• Textile Industry: Guarantees consistent fabric thickness, improving product quality and durability.
• Medical Devices: Verifies the uniformity of non-woven materials used in surgical masks and gowns.
• Packaging Materials: Ensures optimal material thickness for reliable performance in packaging applications.
• Research and Development: Supports the development of innovative materials and products.

Customization and Automation Services

Cell Instruments provides customization options to meet unique testing requirements, such as tailored weights, press times, and automation transformation services for high-throughput environments.

The FTT-02 Fabric Thickness Tester is a versatile and indispensable tool for fabric thickness measurement, ensuring compliance with international standards and meeting the rigorous demands of diverse industries. With its precision, flexibility, and robust design, it empowers businesses to achieve superior quality and reliability in their products.

FAQ Section

1. What materials can the FTT-02 test?
   It measures the thickness of woven, knitted, and non-woven fabrics, including SMS, spunlace, and needle-punched fabrics.
2. What standards does the FTT-02 comply with?
   It adheres to ISO 5084, ISO 9073-2, ASTM D1777, and several other global and regional standards.
3. Is the tester suitable for medical applications?
   Yes, it is widely used for testing non-woven fabrics used in surgical masks, gowns, and other medical materials.
4. Can the device be customized for specific needs?
   Yes, Cell Instruments offers customization options for weights, settings, and even automation features.
5. Why is fabric thickness testing important?
   It ensures material consistency, enhances product performance, and guarantees compliance with industry standards.
