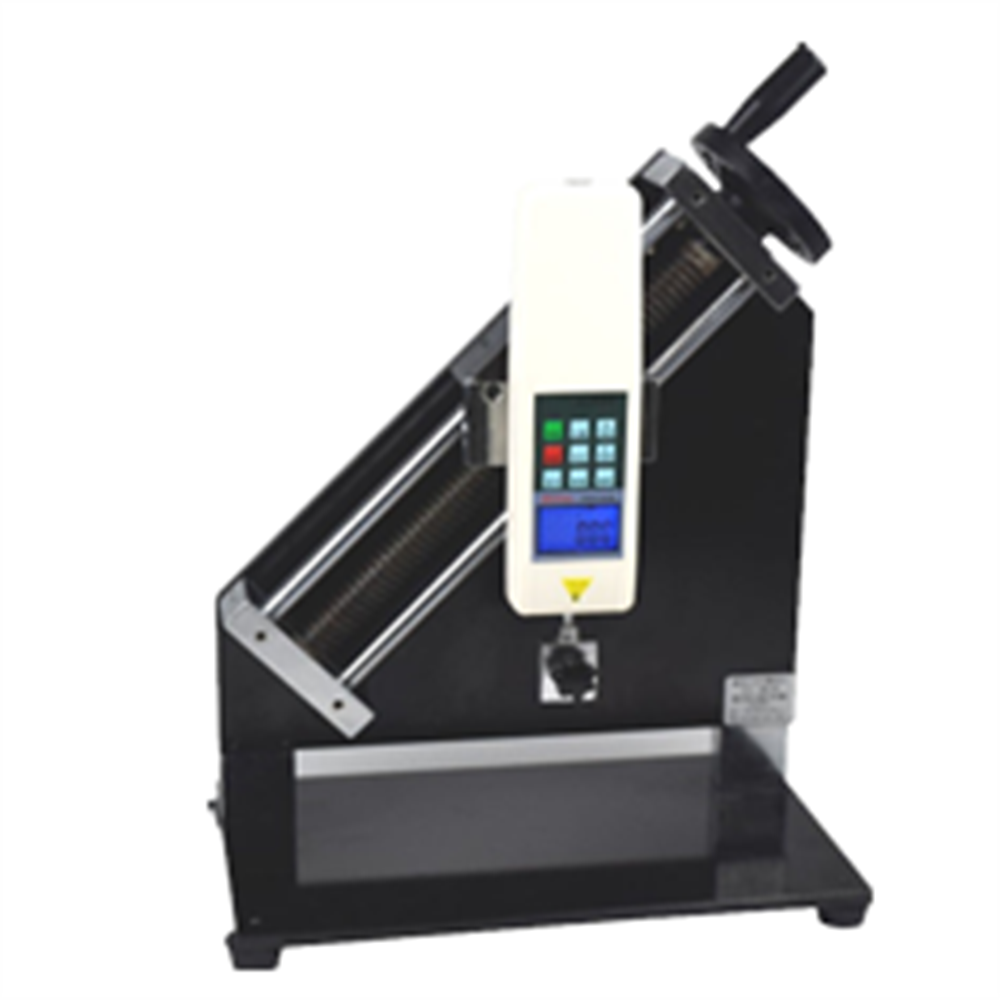

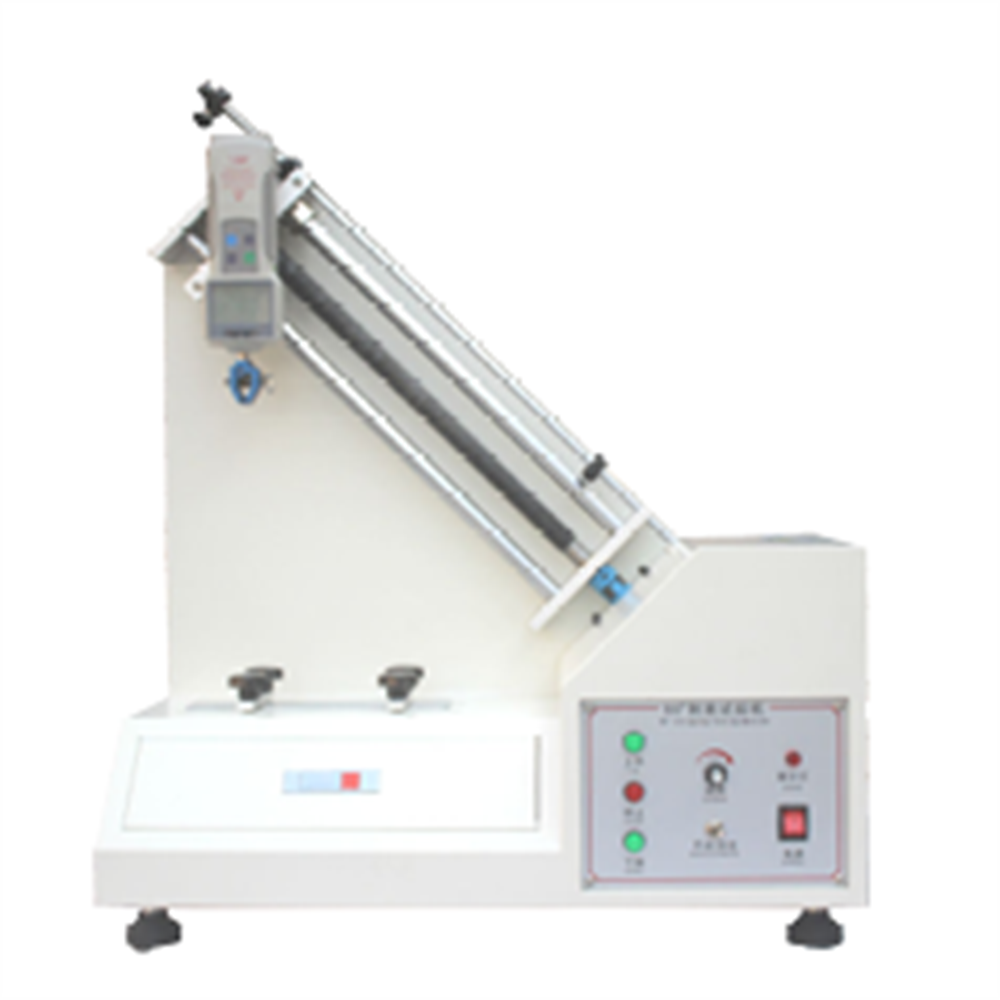

MPL-01 90 Degree Peel Tester

Introduction to the 90 Degree Peel Tester

The 90 Degree Peel Tester is a specialized instrument designed to precisely measure the adhesion strength of various materials when peeled at a 90-degree angle. This testing method is critical for ensuring adhesive reliability and durability across a variety of products, from copper foil circuits on PC boards to tapes, aluminum foils, and other adhesive materials. By testing the force required to peel a sample at a vertical angle, the 90 Degree Peel Tester provides accurate, repeatable results essential for quality assurance, product development, and compliance with industry standards.

Applications of the 90 Degree Peel Tester

This peel tester is widely used for measuring adhesion strength in multiple applications, including:

• Electronics: Testing the adhesion of copper foil on printed circuit boards (PCBs), ensuring circuit reliability.
• Packaging: Verifying the peel strength of aluminum and tin foils, which is crucial for product integrity in packaging.
• Adhesives and Tapes: Evaluating the bonding strength of tapes and adhesives on different substrates, ensuring performance under varying conditions.

These capabilities make the 90 Degree Peel Tester a valuable asset for quality inspection agencies, research and development labs, and manufacturing environments focused on electronics, packaging, adhesives, and more.

Key Features and Parameters

The 90 Degree Peel Tester is designed with precision and versatility in mind, featuring:

• Effective Stroke: 150mm, accommodating a wide range of sample sizes.
• Maximum Load Capacity: 500N, supporting the testing of high-strength materials.
• Compact Dimensions (LWH): 350×210×450 mm, optimizing lab space.
• Net Weight: 19kg, providing stability during testing.
• Effective Test Area: 105×100 mm, expandable to 105×152mm, suitable for various sample configurations.

Overview of the 90 Degree Peel Test Method

The 90-degree peel test is a standard method used to evaluate the adhesive strength between two bonded materials. The procedure includes:

1. Setup: Securing the sample on the test stand with the adhesive area positioned for a vertical peel.
2. Execution: The sample is peeled at a consistent 90-degree angle, ensuring a uniform force application across the bond line.
3. Measurement: The tester calculates the adhesion strength needed to separate the materials, providing reliable data on bond integrity.

This method offers a precise measure of peel resistance and is used for both product quality control and research into adhesive performance under controlled conditions.

Advantages of Using a 90 Degree Peel Tester

The 90 Degree Peel Tester provides numerous advantages in product testing:

• Accurate and Repeatable Results: Designed for reliable peel resistance measurements, making it ideal for both quality control and R&D.
• Versatile Applications: Suitable for testing a wide range of adhesive materials across multiple industries.
• User-Friendly Design: Simplifies setup and execution, allowing for efficient testing without compromising precision.

The 90 Degree Peel Tester is an essential tool for any industry that relies on precise adhesive measurements. Its ability to provide standardized, reliable data makes it ideal for ensuring product quality and compliance with industry standards. From electronics and packaging to adhesives and quality inspection agencies, this tester is an investment in consistent quality control and product integrity.

FAQ Section

1. What is a 90-degree peel test?
   A 90-degree peel test measures the adhesive strength of materials by peeling them at a 90-degree angle, which provides accurate and repeatable results.
2. What materials can be tested with this instrument?
   This tester is suitable for copper foils, aluminum foils, tapes, and other adhesive products used in various industries.
3. Why is the 90-degree angle important in peel testing?
   A 90-degree angle ensures controlled, consistent force application, resulting in reliable strength measurements that can be compared across tests.
4. What are the maximum load limits of this tester?
   The tester supports loads up to 500N, making it versatile for testing a range of high-strength materials.
5. What industries use the 90-degree Peel Tester?
   The 90 Degree Peel Tester is commonly used in electronics, packaging, adhesives, and quality control across manufacturing sectors that require precise adhesive strength measurements.
