LT-01 Leak Tester

Introduction

In the world of packaging, ensuring the integrity of package seals is critical for protecting products from contamination, preserving shelf life, and maintaining safety standards. A reliable vacuum leak tester for packaging plays an essential role in detecting any leaks that may compromise the seal integrity. This is particularly important for industries such as food packaging, medical devices, pharmaceuticals, and electronics. The LT-01 Vacuum Leak Tester by Cell Instruments offers a cost-effective, manual solution for accurately detecting leaks, ensuring high-quality, reliable seals in your packaging.

What is a Vacuum Leak Tester for Packaging?

A vacuum leak tester for packaging is an essential tool for evaluating the integrity of sealed packages. By creating a vacuum environment, it detects any leaks that might exist in flexible or rigid packaging. Leaks can affect the shelf life, safety, and performance of the product. Using this testing method, manufacturers can assess the quality of their packaging seals, ensure they are airtight, and comply with industry standards.

Key Features and Benefits of the LT-01 Vacuum Leak Tester

Manual Model
The LT-01 is a manual leak tester, offering an economical yet durable solution for vacuum leak testing. It is designed for simplicity, making it ideal for use in small-scale operations, laboratories, or quality control departments.

Stable Vacuum Creation with Venturi Tube
Using a Venturi tube, the LT-01 generates vacuum levels up to –90KPa, which is essential for detecting even the smallest leaks in package seals. The Venturi tube offers a reliable vacuum source by utilizing compressed air, making it easier for users to operate the device without the need for an external vacuum pump.

Durable and Transparent Chamber

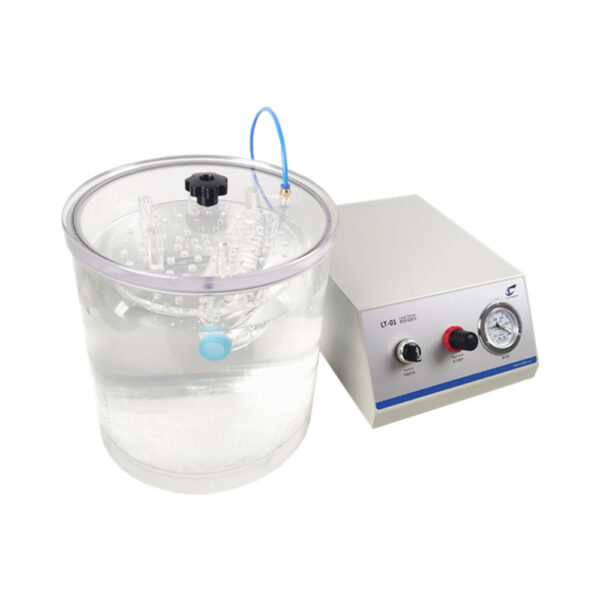

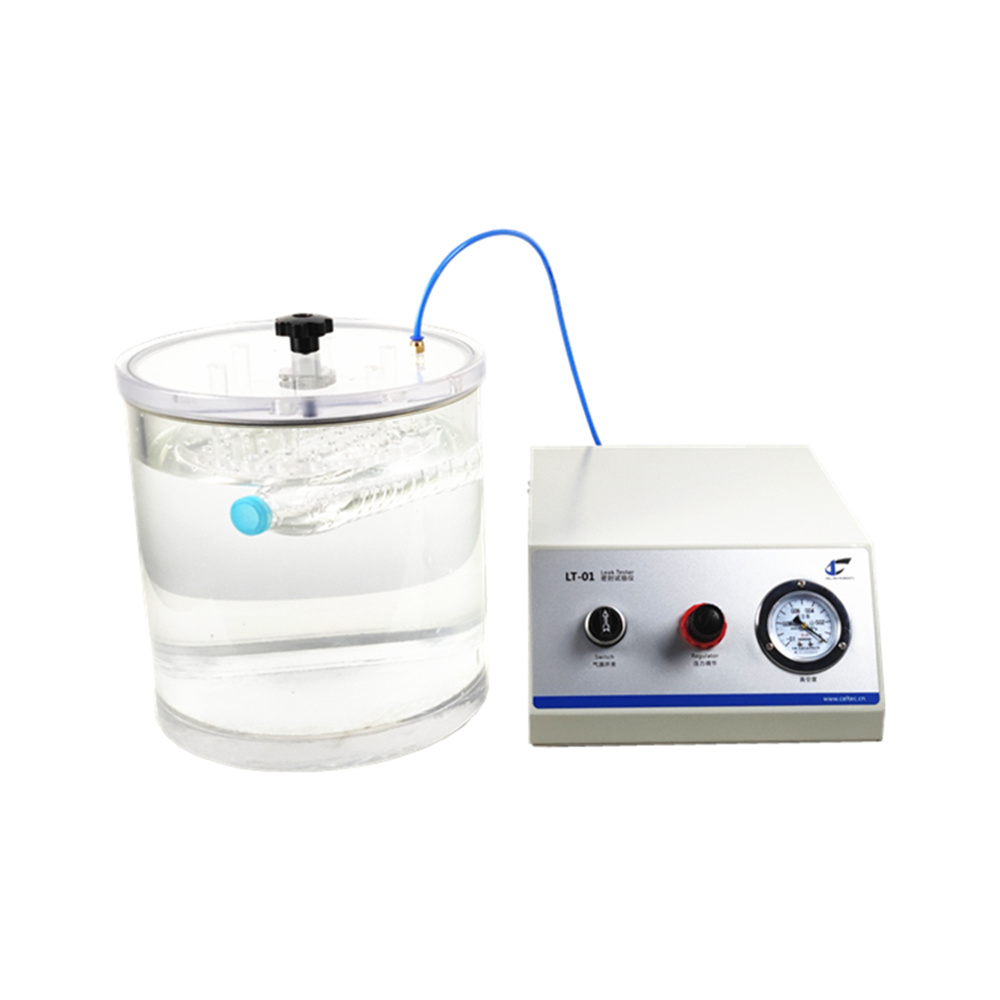

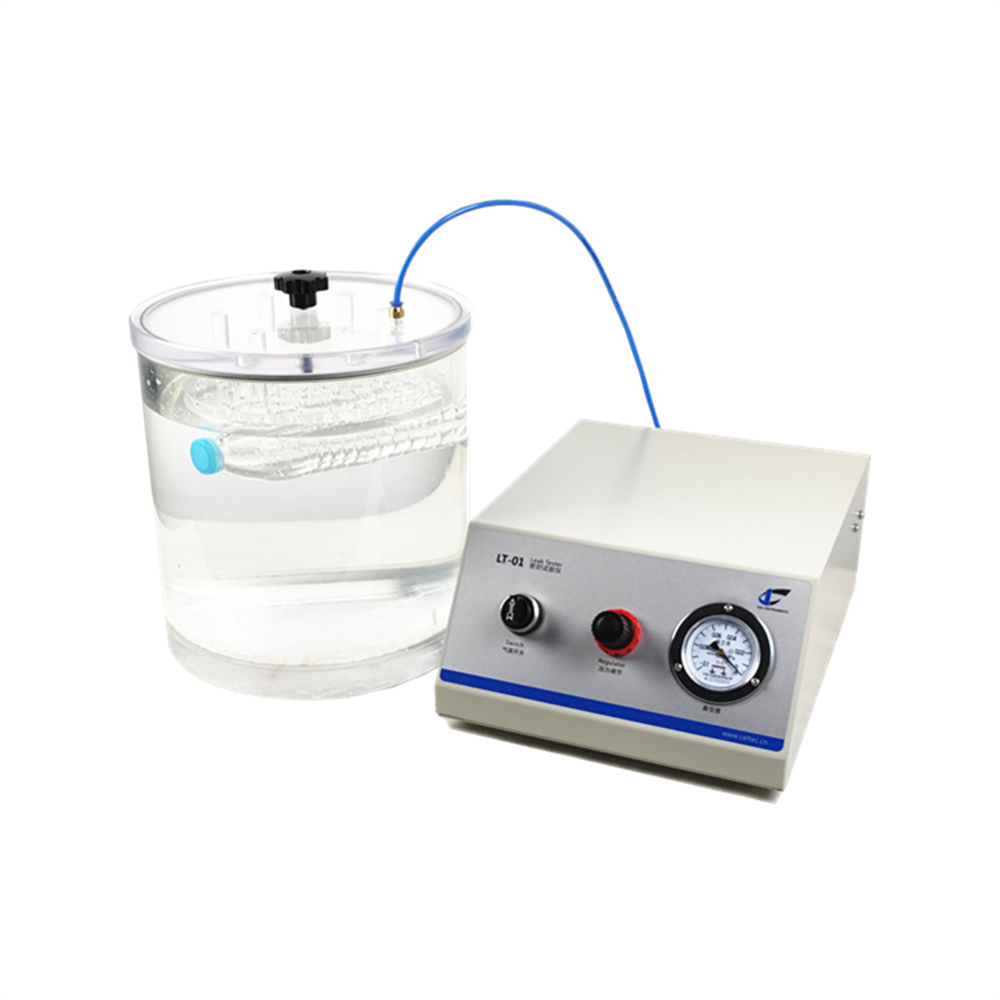

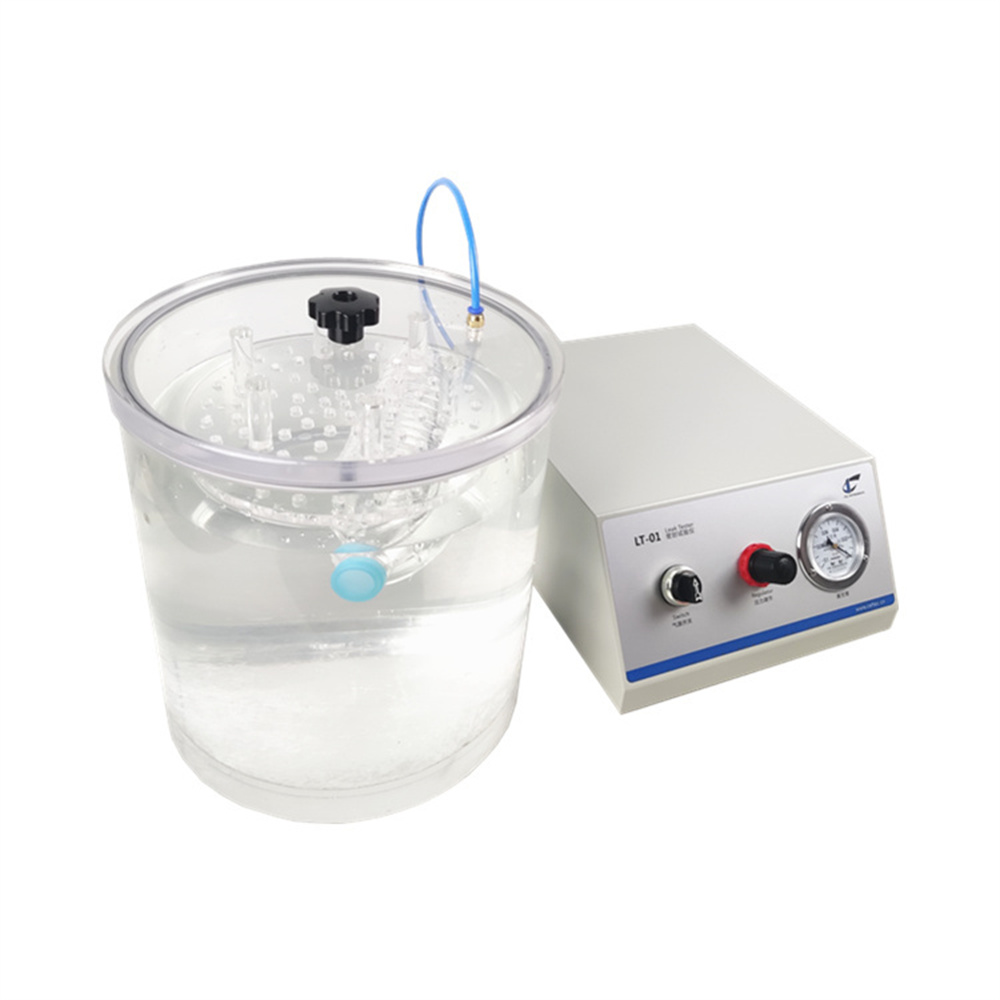

The LT-01 features a strong, acrylic, transparent chamber that allows clear visibility of the sample during testing. The chamber is designed to accommodate various sizes and shapes of packaging, ensuring versatility and user-friendly operation. Custom chamber sizes are available to meet different packaging specifications.

No Electricity Required
This leak tester does not require any electrical power, making it an energy-efficient solution that is easy to operate anywhere, even in remote locations or environments where electricity access may be limited.

Customization Options
The LT-01 can be customized to work with larger chambers or additional features to meet more complex packaging testing needs. The system can be adapted to different packaging sizes, from small pouches to larger medical or pharmaceutical containers.

Test Description: How the Vacuum Leak Test Works

To perform the vacuum leak test, the following steps are taken:

1. Test Setup: Place the sample package into the transparent chamber and seal the lid securely.
2. Vacuum Application: The Venturi tube is used to create a vacuum by allowing compressed air to flow through it. This results in a vacuum pressure inside the chamber, which is monitored to ensure stability.
3. Leak Detection: The vacuum environment inside the chamber causes any trapped air or gases within the package to escape if a leak is present. The presence of a leak is visibly indicated by bubbles forming around the area where the leak is located. This makes it easy to detect even small punctures or faulty seals.

ASTM D3078 and Its Importance in Vacuum Leak Testing for Packaging

ASTM D3078 is a standard test method developed by ASTM International for determining the leak integrity of flexible packaging materials using a vacuum method. It provides a clear, standardized procedure for assessing the ability of a package to maintain its seal under vacuum conditions.

By following ASTM D3078, the LT-01 ensures that your vacuum leak testing is consistent and reliable. The standard outlines the parameters and testing methods for achieving accurate leak detection, which is vital for products where packaging integrity is a regulatory or safety concern. This test method is widely recognized in industries like food and pharmaceuticals, where packaging failure can lead to product spoilage or contamination.

Additional Relevant Standards for Packaging Leak Testing

• ASTM D4991: This standard covers vacuum decay leak testing methods, which are particularly useful when higher vacuum levels are needed for more sensitive packaging. The LT-01 can be adapted to meet the requirements of ASTM D4991 by upgrading to a vacuum pump for achieving even higher vacuum levels.
• Other Industry Standards: Compliance with various international packaging standards, such as those from the FDA or ISO, is essential for manufacturers. ASTM D3078 aligns with these standards and ensures your packaging meets industry expectations for quality and safety.

Applications of the LT-01 Vacuum Leak Tester

The LT-01 is designed for a wide range of applications across several industries:

• Food Packaging: Ensuring the integrity of food package seals to prevent spoilage and contamination.
• Medical Devices and Pharmaceuticals: Verifying that medical packaging, such as blister packs and vials, are sealed properly to avoid contamination or degradation of sensitive products.
• Electronics Packaging: Testing the seals on protective packaging for sensitive electronic components.
• Consumer Goods: Checking the seals of various consumer products that require airtight packaging to preserve quality.

By utilizing the LT-01, companies can enhance the quality control of their packaging processes, reduce the likelihood of defects, and ensure that their products are protected during storage and transport.

Technical Specifications of the LT-01 Vacuum Leak Tester

Test Range	0~-90 KPa
Chamber Acrylic	cylinder shape
Test Space	Φ270*H210mm (Inside Usable)
Compressed Air	0.7MPa (Prepared by user)
Electricity	Not Needed

Why Choose Cell Instruments’ LT-01 Vacuum Leak Tester?

Cell Instruments’ LT-01 Vacuum Leak Tester provides a reliable and economical solution for packaging leak testing. Designed to meet ASTM D3078 standards, it ensures the integrity of your packaging seals, preventing costly packaging failures. Whether you’re working in food, medical, pharmaceutical, or electronics packaging, the LT-01 guarantees precise and efficient leak detection. Its durable construction, ease of use, and customization options make it an excellent choice for businesses aiming to improve their packaging quality control.

FAQ Section

1. What types of leaks can the LT-01 detect?
The LT-01 can detect both micro-leaks and visible leaks in flexible packaging materials. Leaks are indicated by bubbles forming in the vacuum chamber, helping to identify even the smallest defects.

2. How does the Venturi tube contribute to creating a vacuum for testing?
The Venturi tube uses compressed air to create a vacuum by generating a pressure differential, which is essential for simulating real-world packaging conditions and detecting leaks effectively.

3. Can the LT-01 be customized to fit different packaging sizes?
Yes, the LT-01 features customizable chamber sizes to accommodate various types of packaging, from small pouches to larger medical and pharmaceutical containers.

4. What industries benefit the most from vacuum leak testing?
Industries such as food packaging, medical devices, pharmaceuticals, electronics, and consumer goods all rely on vacuum leak testing to ensure packaging integrity and product safety.

5. Is there a more advanced model for higher vacuum levels, like ASTM D4991?
Yes, the LT-01 can be modified to work with a vacuum pump, achieving higher vacuum levels suitable for more advanced testing like ASTM D4991.
