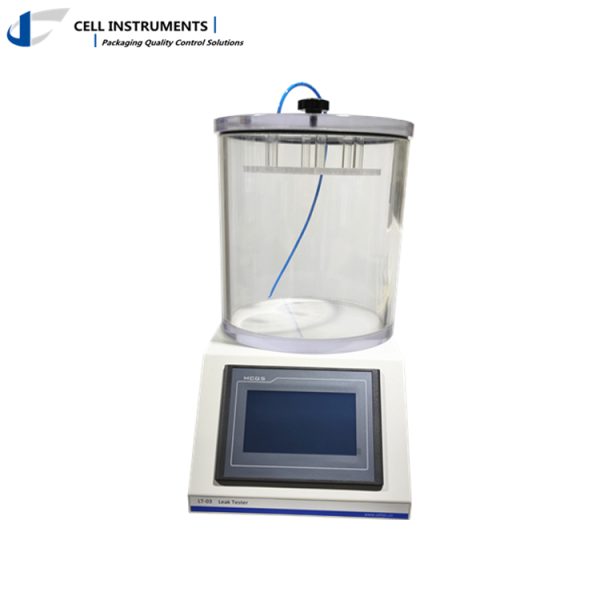

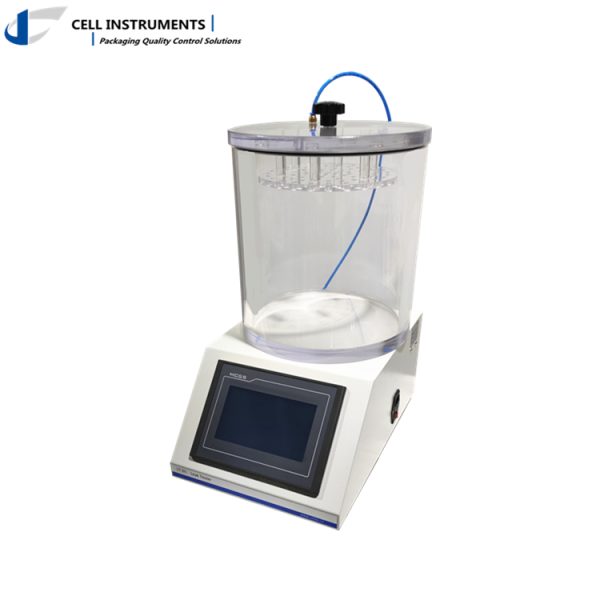

Comprobador de fugas LT-03

Probar la integridad de los sellos del paquete ayuda a garantizar que el embalaje brinde la protección necesaria al producto.

Solicitud

La prueba de la integridad de los sellos de los paquetes ayuda a garantizar que el embalaje brinde la protección necesaria al producto. Las alternativas de embalaje sustentables, los embalajes de menor costo y las variaciones en los parámetros de sellado de la línea de producción se evalúan con frecuencia mediante pruebas de integridad de los sellos. Mantener la confiabilidad de los sellos de los paquetes es fundamental para la calidad y la seguridad del producto.

Descripción de la prueba

A sample is placed into the chamber filled with water. After the lid is put back. the control unit start to extract the air inside chamber out, until the preset vacuum is achieved. Because of the pressure difference between inside and outside of sample, air in it will escape if there is a small leak. The leak is shown by a stream of bubbles from the leak area.

Características técnicas
  • Unidad controlada por PLC (nivel industrial estable) y operada por pantalla táctil HMI.
  • Para lograr un vacío estable y teniendo en cuenta que el aire comprimido es más fácil de obtener en las instalaciones del usuario, utilizamos un tubo Venturi para un alto nivel de vacío de hasta -90 KPa.
  • This way of test is based on eye observation, which means the tester doesn’t give a direct result of whether a sample Passes or Fails. By “telling” tester the sample status, it automatically accumulates the result numbers.
  • For user having various types of samples and test conditions (vacuum level and test time), LT-03 has 5 group parameters saving function to improve efficiency.

Parámetros principales

Test Range                                     0~-90 KPa

Chamber                                       Acrylic cylinder shape

Test Space                                    Φ270*H210mm (internal usable)

Compressed Air                           0.7MPa ( Prepared by user)

Power                                              110~220V 50/60Hz
