The Importance of Drop Weight Impact Testing in Material Quality Assessment

Introduction

Drop weight impact testing is a vital method for evaluating the impact resistance of materials, particularly plastic films. This test determines how well materials can withstand external forces, ensuring their durability and integrity. In this article, we will explore the significance of drop weight impact testing, its applications, and how it adheres to ISO 7765-1 and ASTM D1709 standards.

What is Drop Weight Impact Testing?

Drop weight impact testing involves dropping a weighted object from a specified height onto a material sample to observe its response to impact. The goal is to measure the energy required to cause the material to fail. This test is widely used in industries where material toughness and resilience are critical, such as packaging, automotive, and construction.

The Relevance of ISO 7765-1 and ASTM D1709 Standards

Standards like ISO 7765-1 and ASTM D1709 provide guidelines for conducting drop weight impact tests. These standards ensure that the tests are performed consistently and accurately, allowing for reliable comparisons between different materials. Adhering to these standards is crucial for manufacturers aiming to meet industry quality requirements.

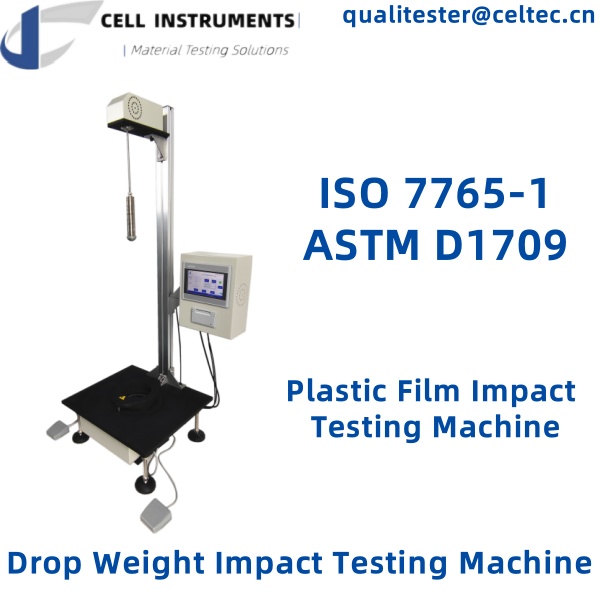

Drop Weight Impact Testing Machine

Applications of Drop Weight Impact Testing

Plastic Films

Plastic films used in packaging must withstand impacts during transportation and handling. Drop weight impact testing helps determine their durability and suitability for various applications.

Medical Device Materials

Medical device materials need to be robust to ensure safety and functionality. Impact testing assesses their ability to resist damage under stress.

Adhesives and Sealants

Adhesives and sealants used in construction and automotive industries must endure significant forces. Drop weight impact testing evaluates their performance under impact conditions.

Choosing the Right Plastic Film Impact Testing Machine

Selecting an appropriate plastic film impact testing machine is essential for accurate and reliable results. The FDT-01 Falling Dart Impact Tester from Cell Instruments is an excellent choice. It is designed to test the resistance of plastic films, sheets, composite films, foils, and paper, provided they are less than 1mm thick.

Key Features of FDT-01 Falling Dart Impact Tester

PLC Control and Touch Screen Operation: Ensures stability and ease of use.
Dual Test Methods (A and B): Provides flexibility in testing.
Safe Operation: Equipped with both test button and foot switch.
Efficient Data Output: Includes an embedded dot matrix micro-printer.
Professional Software: Optional software for enhanced data analysis.

How to Perform Drop Weight Impact Testing

Preparation

Sample Preparation: Cut the material sample to the required dimensions.
Set Up: Position the sample in the testing machine.

Testing Procedure

Weight Selection: Choose the appropriate weight for the dart.
Dropping the Dart: Release the dart from the specified height.
Observing the Impact: Record the energy required to cause the material to fail.

Result Analysis

Analyze the results to determine the material’s impact resistance. The FDT-01 provides results in grams and joules, making it easy to interpret the data.

FAQs About Drop Weight Impact Testing

1. What materials can be tested using drop weight impact testing?

Materials such as plastic films, sheets, composite films, foils, and paper with less than 1mm thickness can be tested.

2. Why are ISO 7765-1 and ASTM D1709 standards important?

These standards ensure that tests are conducted consistently, providing reliable and comparable results.

3. How does the FDT-01 Falling Dart Impact Tester ensure safety?

It includes features like a foot switch, observation light, and electromagnetic suspension for safe and easy operation.

4. Can the FDT-01 be used for materials other than plastic films?

Yes, it is versatile and can test various materials provided they meet the thickness requirement.

5. How is the impact strength result displayed?

Results are displayed in grams and joules, with an option for automatic calculation and data output via a micro-printer.

Conclusion

Drop weight impact testing is essential for assessing the durability and impact resistance of materials. By adhering to standards like ISO 7765-1 and ASTM D1709, manufacturers can ensure their products meet industry quality requirements. The FDT-01 Falling Dart Impact Tester from Cell Instruments offers a reliable solution for conducting these tests, making it an invaluable tool for quality control in various industries.
