ASTM D882 Thin Film Tensile Strength Testing for QC

Introduction to Thin Film Tensile Strength Testing

Thin film tensile strength testing is a critical process in evaluating the durability and performance of plastic films used in industries such as packaging, medical devices, and electronics. Ensuring that these films can withstand tensile forces without breaking is essential for maintaining product integrity during transport, storage, and usage. This article explores the significance of thin film tensile strength, the role of ASTM D882, and how Cell Instruments’ tensile strength tester can help ensure accuracy and reliability in testing.

What Is Thin Film Tensile Strength?

Tensile strength refers to the maximum stress a material can withstand when stretched before breaking. For thin films, which are widely used in packaging and medical industries, tensile strength provides essential insights into the film’s ability to endure tension during various processes. Ensuring high tensile strength in these films helps manufacturers prevent material failure, thereby protecting the contents of the package or product.

Thin films, typically less than 1.0 mm in thickness, must be tested under controlled conditions to determine their mechanical properties. These tests, conducted in accordance with ASTM D882, measure not only tensile strength but also yield strength, elongation at break, and the modulus of elasticity.

Importance of ASTM D882 for Thin Film Testing

(ASTM D882) is the standard method used to determine the tensile properties of thin plastic films and sheeting. It defines how the material should be prepared, tested, and evaluated, ensuring consistency across different industries and applications. For packaging materials, the test results provide crucial data about a film’s capacity to maintain its integrity during shipping, storage, and handling.

In the medical field, tensile testing according to ASTM D882 helps verify that the films used for sterile packaging can withstand the rigors of sterilization, transport, and long-term storage without tearing or puncturing.

How ASTM D882 Tensile Strength Tests Are Conducted

https://youtu.be/DVxj_f6DNmI

The ASTM D882 tensile test follows a specific procedure designed to yield consistent, reliable results:

Specimen Preparation: Thin plastic films are prepared according to ASTM D882 standards, with specimens typically measuring 25 mm in width. The length of the sample is selected to ensure sufficient room for stretching during the test.
Mounting the Specimen: The prepared sample is mounted between two grips on a tensile testing machine, with one grip remaining stationary while the other applies a controlled force.
Applying Force: A uniaxial force is applied to the film until it breaks. Throughout this process, the machine records tensile strength, elongation, yield strength, and the modulus of elasticity.

These parameters help manufacturers understand the mechanical behavior of thin films under stress, ensuring the materials meet industry standards and performance expectations.

The Role of Cell Instruments’ ASTM D882 Tensile Strength Tester

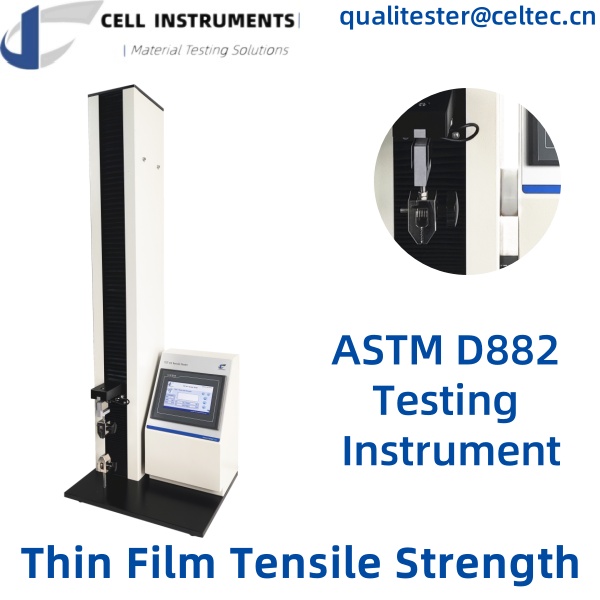

Cell Instruments offers a cutting-edge ASTM D882 Tensile Strength Testing Machine specifically designed to test thin plastic films and sheeting. This instrument ensures that manufacturers can measure tensile strength with precision, adhering to the standards set forth by ASTM D882.

Key features include:

High Accuracy: With a test range of 0-500N and displacement accuracy of 0.01 mm, the machine ensures precise results.
Customizable Test Parameters: The machine allows for adjustable test speeds (1-500 mm/min) and customizable stroke lengths to meet specific industry needs.
User-Friendly Interface: Equipped with a 7-inch HMI touch screen, the tester is easy to operate, and its PLC control system ensures stability during the testing process.

Manufacturers across industries rely on this machine for consistent, reliable data on thin film tensile strength, improving product quality and ensuring compliance with international standards.

Applications of Thin Film Tensile Strength Testing

Thin film tensile strength testing, conducted with ASTM D882 standards, has a wide range of applications in different industries:

Packaging: Ensuring plastic films can withstand tension during transportation and storage is critical for product safety.
Medical Devices: Films used in medical packaging must meet stringent strength and durability requirements to maintain sterility and product integrity.
Adhesives and Laminates: Tensile strength testing helps measure the durability of adhesive films under stress.
Food Packaging: Films used in food packaging must remain strong and flexible to protect the contents during transportation and storage.

Benefits of Using Cell Instruments’ ASTM D882 Tensile Strength Tester

By utilizing the ASTM D882 tensile strength tester from Cell Instruments, manufacturers benefit from:

Improved Product Durability: Accurate tensile strength data helps optimize material composition, leading to better-performing products.
Compliance with Global Standards: The machine ensures that testing adheres to ASTM D882 standards, making products more acceptable in international markets.
Increased Efficiency: Automation features streamline the testing process, saving time and resources.

FAQ:

1. What is the importance of tensile strength testing for thin films?

Tensile strength testing ensures that thin films can withstand tension without breaking, which is crucial for maintaining the integrity of packaging and medical materials.

2. What is ASTM D882?

ASTM D882 is the standard method for testing the tensile properties of thin plastic films and sheeting, providing critical data on material strength, elongation, and elasticity.

3. Can Cell Instruments’ tensile strength tester be customized?

Yes, the machine can be customized for specific testing needs, including different stroke lengths and test ranges.

4. How does tensile testing improve product quality?

Tensile testing provides insights into material performance under stress, allowing manufacturers to optimize materials for better durability and reliability.

5. What industries benefit from ASTM D882 testing?

Industries such as packaging, medical devices, adhesives, and food packaging rely on ASTM D882 testing to ensure the quality and durability of their materials.
